Item group
5/2-way & 5/3-way valves G 1/2“, Series RV40
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
*mechanical spring
Documents:
More information
5/2-way & 5/3-way valves G 1/2“, Series RV40:
20 of 20 articles

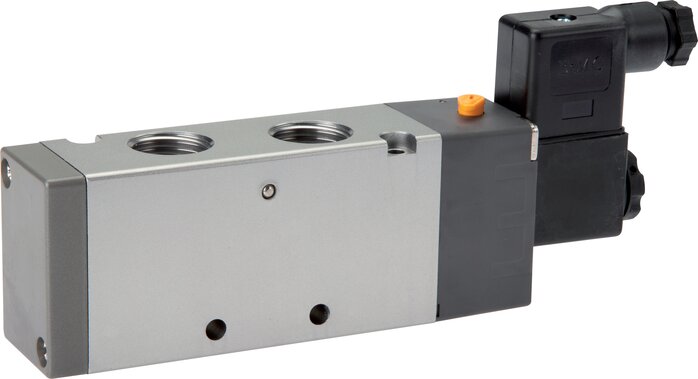

RV 5241-15-24V=
5/2-way solenoid valve, G 1/2", spring return, 24 V DC
€124.69
incl. VAT
RV 5241-15-230V
5/2-way solenoid valve, G 1/2", spring return, 230 V AC
€124.69
incl. VAT
RV 5241-15-12V=
5/2-way solenoid valve, G 1/2", spring return, 12 V DC
€124.69
incl. VAT
RV 5241-15-24VAC
5/2-way solenoid valve, G 1/2", spring return, 24 V AC
€124.69
incl. VAT

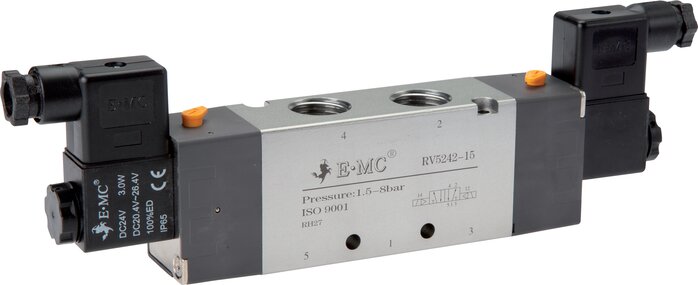

RV 5242-15-24V=
5/2-way solenoid valve, G 1/2", pulse valve, 24 V DC
€153.26
incl. VAT
RV 5242-15-230V
5/2-way solenoid valve, G 1/2", pulse valve, 230 V AC
€153.26
incl. VAT
RV 5242-15-12V=
5/2-way solenoid valve, G 1/2", pulse valve, 12 V DC
€153.26
incl. VAT
RV 5242-15-24VAC
5/2-way solenoid valve, G 1/2", pulse valve, 24 V AC
€153.26
incl. VAT
RV 5342-15C-24V=
5/3-way solenoid valve, G 1/2", Centre position closed, 24 V DC
€255.80
incl. VAT
RV 5342-15C-230V
5/3-way solenoid valve, G 1/2", Centre position closed, 230 V AC
€255.80
incl. VAT
RV 5342-15C-12V=
5/3-way solenoid valve, G 1/2", Centre position closed, 12 V DC
€255.80
incl. VAT
RV 5342-15C-24VAC
5/3-way solenoid valve, G 1/2", Centre position closed, 24 V AC
€255.80
incl. VAT
RV 5342-15E-24V=
5/3-way solenoid valve, G 1/2", Centre position vented, 24 V DC
€255.80
incl. VAT
RV 5342-15E-230V
5/3-way solenoid valve, G 1/2", Centre position vented, 230 V AC
€255.80
incl. VAT
RV 5342-15E-12V=
5/3-way solenoid valve, G 1/2", Centre position vented, 12 V DC
€255.80
incl. VAT
RV 5342-15E-24VAC
5/3-way solenoid valve, G 1/2", Centre position vented, 24 V AC
€255.80
incl. VAT
RV 5342-15P-24V=
5/3-way solenoid valve, G 1/2", Centre position breathing, 24 V DC
€255.80
incl. VAT
RV 5342-15P-230V
5/3-way solenoid valve, G 1/2", Centre position breathing, 230 V AC
€255.80
incl. VAT
RV 5342-15P-12V=
5/3-way solenoid valve, G 1/2", Centre position breathing, 12 V DC
€255.80
incl. VAT
RV 5342-15P-24VAC
5/3-way solenoid valve, G 1/2", Centre position breathing, 24 V AC
€255.80
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
