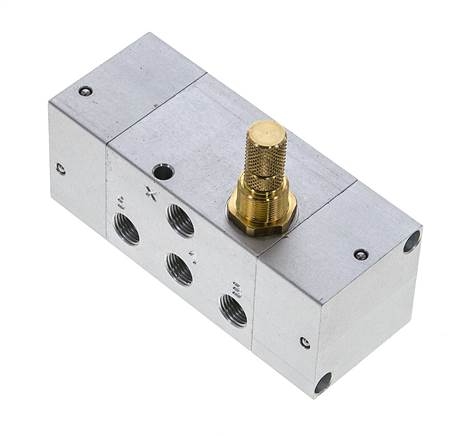

5/2-way time valve, 1 to 10 seconds, Delayed backwash filter
{{ $t('shop.all.artikelnummer') }}:
VZ 18 513 B
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10°C to +60°C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1
Function:
Type VZ 18 512 B (reaction: delayed, backwash filter: immediate): A continuous signal on connection X effects a changeover of the valve after the time that has been set. If there is no signal any more at connection X, the valve goes back into its initial position.
VZ 18 513 B type (reaction: immediate, backwash filter: delayed): A continuous signal at the connection X triggers an immediate switching of the valve. The valve switches back to the initial position according to the time set. If no signal is at connection X, then the valve also switches back to the initial position.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10°C to +60°C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1
Function:
Type VZ 18 512 B (reaction: delayed, backwash filter: immediate): A continuous signal on connection X effects a changeover of the valve after the time that has been set. If there is no signal any more at connection X, the valve goes back into its initial position.
VZ 18 513 B type (reaction: immediate, backwash filter: delayed): A continuous signal at the connection X triggers an immediate switching of the valve. The valve switches back to the initial position according to the time set. If no signal is at connection X, then the valve also switches back to the initial position.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | Delayed backwash filter |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Thread control connection (1x) | G 1/8" |
| flow [l/min] | 530 |
| Operating pressure [bar] | 3 - 10 |
| Time range [s] | 1 - 10 |
{{ $t('shop.display.artikel.info') }} VZ18513B
| {{ $t('shop.all.gewicht') }} | 290 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571730109 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84814090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 781) atlas9_seiten/781.pdf
3D CAD file (volume model) protected/cad/3d/72460/vz18513b#43503.stp
3D CAD file (volume model) protected/cad/3d/72460/vz18513b#43503.stp
