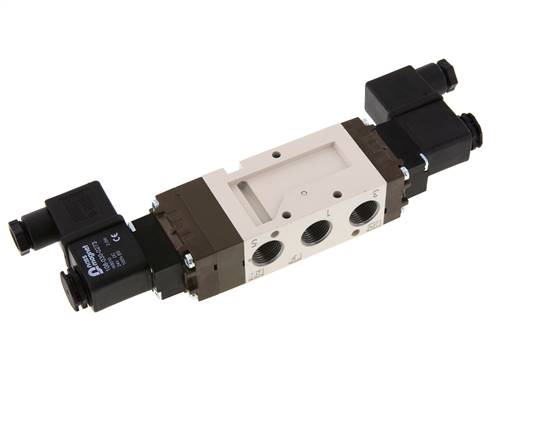

5/3-way solenoid valve, G 3/8", Centre position closed, 24 V DC
Item number:
SF5303 IPSC-D4
Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 40 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 40 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Properties
| Control voltage | 24 V DC |
| function | Centre position closed |
| Thread (3x) | G 3/8" |
| Thread exhaust air (2x) | G 3/8" |
| Operating pressure [bar] | 2 - 10 |
| flow [l/min] | 1600 |
| Power consumption (DC) [W] | 2,1 |
| Spare solenoid coil | MAG M 24V= |
Further information on SF5303IPSC-D4
| Weight | 500 g / pcs |
| GTIN | 4050571623203 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 736) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
