Item group

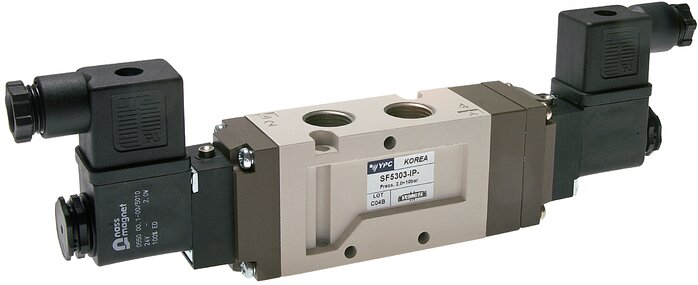

5/3-way solenoid valves G 3/8", Series SF5000

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Switching time (at 5 bar):

< 40 ms

Protection class:

IP 65

Structural shape solenoid coil:

M (plug size 1)

Documents:

More information Less information

Filter items

Stuurspanning
Please select
Werking
Please select
5/3-way solenoid valves G 3/8", Series SF5000:
15 of 15 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Not in stock
Not in stock
Not in stock
Immediately available
Immediately available
Not in stock
Immediately available
Not in stock
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
