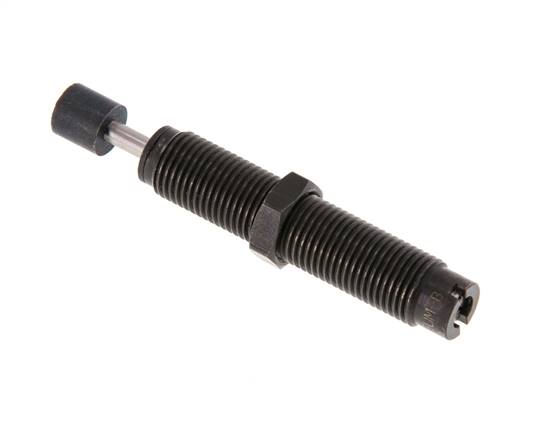

ACE shock absorber, M 10x1, adjustable, stroke 7,2 mm
Item number:
MA 50 EUM
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
Properties
| Thread B | M 10x1 |
| Stroke [mm] | 7,2 |
| max. Energy consumption per stroke (W3) [Nm] | 5,5 |
| max. Energy consumption per hour (W4) [Nm] | 13550 |
| effective mass (me) adjustable [KGM] | 4,5 - 20 |
| Spring force [N] | 3 - 6 |
| A [mm] | 5,1 |
| D [mm] | 49,8 |
| E [mm] | 4 |
| G [mm] | 3,2 |
| I [mm] | 14,9 |
| J [mm] | 3,0 |
| K [mm] | 7,7 |
| SW2 [mm] | 12 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 10 SC2 |
| Stop sleeve | AH 10 |
| Side load adapter** | BV 10 |
| Locking nut | KM 10 |
Further information on MA50EUM
| Weight | 23 g / pcs |
| GTIN | 4050571479428 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
