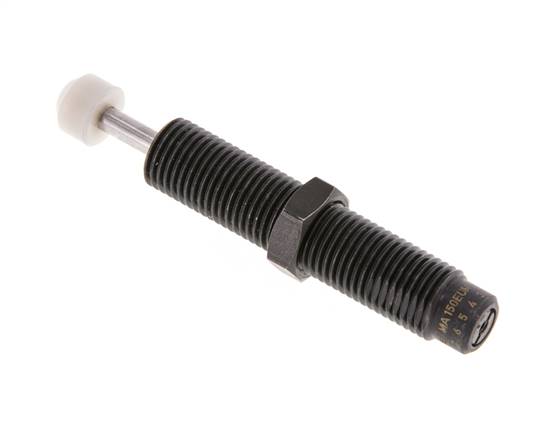

ACE shock absorber, M 14x1,5, adjustable, stroke 12,7 mm
Item number:
MA 150 EUM
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
Properties
| Thread B | M 14x1,5 |
| Stroke [mm] | 12,7 |
| max. Energy consumption per stroke (W3) [Nm] | 22 |
| max. Energy consumption per hour (W4) [Nm] | 35000 |
| effective mass (me) adjustable [KGM] | 1 - 109 |
| Spring force [N] | 3 - 5 |

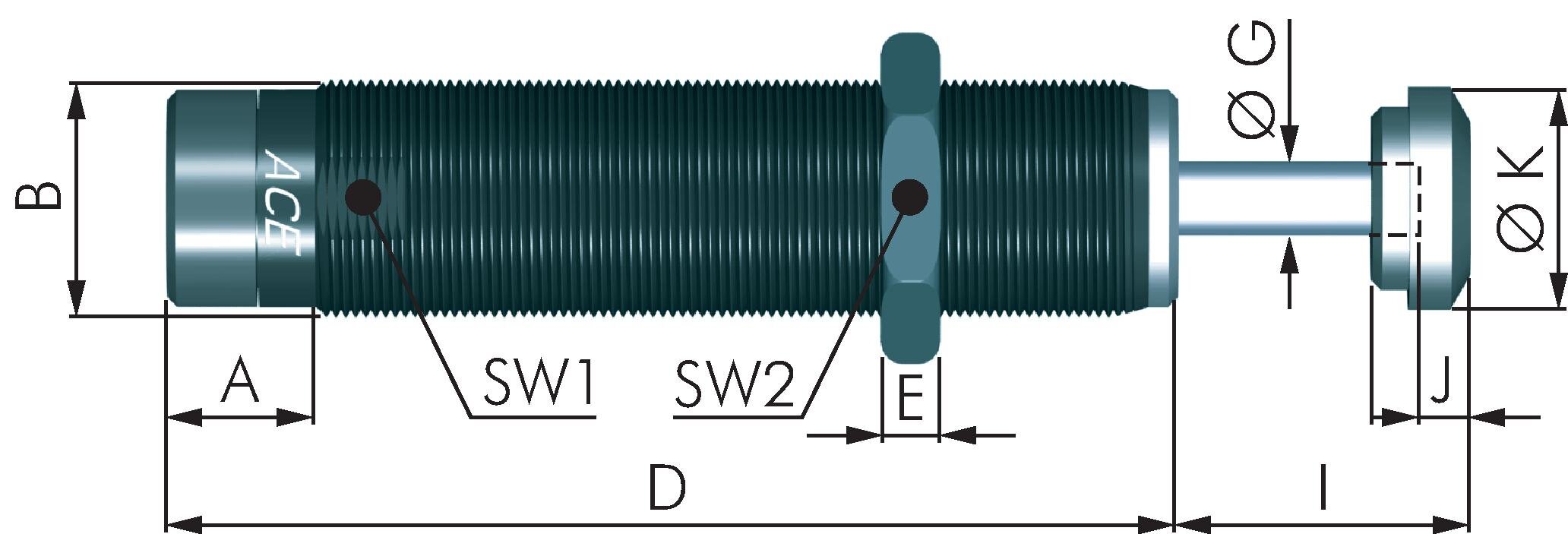

| A [mm] | 7,1 |
| D [mm] | 69,1 |
| E [mm] | 6 |
| G [mm] | 4,8 |
| I [mm] | 22,5 |
| J [mm] | 4,7 |
| K [mm] | 12,0 |
| SW1 [mm] | 12 |
| SW2 [mm] | 17 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 14 |
| Stop sleeve | AH 14 |
| Side load adapter** | BV 14 |
| Locking nut | KM 14 |
Further information on MA150EUM
| Weight | 55 g / pcs |
| GTIN | 4050571479299 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
