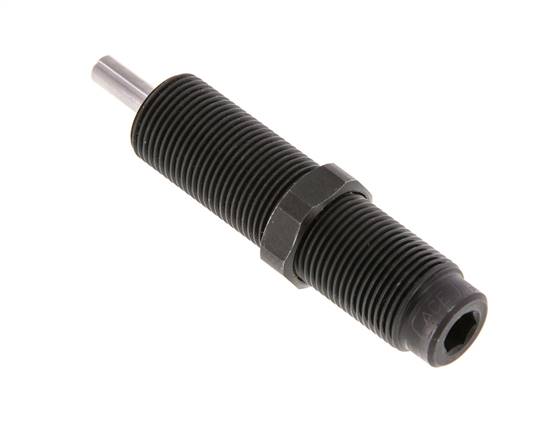

ACE shock absorber, M 20x1,5, self-adjusting, stroke 12,7 mm
Item number:
MC 225 EUMH2
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
Properties
| Thread B | M 20x1,5 |
| Stroke [mm] | 12,7 |
| max. Energy consumption per stroke (W3) [Nm] | 41 |
| max. Energy consumption per hour (W4) [Nm] | 45000 |
| effective mass (me) [KGM] | 180 - 910 |
| Spring force [N] | 4 - 9 |
| A [mm] | 7,2 |
| C [mm] | 79,2 |
| E [mm] | 8 |
| G [mm] | 6,3 |
| I [mm] | 17,5 |
| SW1 [mm] | 8 |
| SW2 [mm] | 23 |
| Max. axial deviation* [°] | 4 |
| Impact head | PP 225 |
| clamping flange | MB 20 |
| Stop sleeve | AH 20 |
| Side load adapter** | BV 20 |
| Locking nut | KM 20 |
Further information on MC225EUMH2
| Weight | 125 g / pcs |
| GTIN | 4050571481254 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
