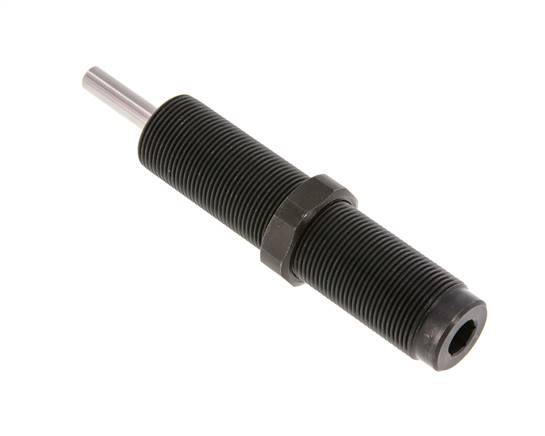

ACE shock absorber, M 25x1,5, self-adjusting, stroke 25,4 mm
Item number:
MC 600 EUMH2
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
Properties
| Thread B | M 25x1,5 |
| Stroke [mm] | 25,4 |
| max. Energy consumption per stroke (W3) [Nm] | 136 |
| max. Energy consumption per hour (W4) [Nm] | 68000 |
| effective mass (me) [KGM] | 400 - 2300 |
| Spring force [N] | 5 - 10 |
| A [mm] | 7,3 |
| C [mm] | 110,3 |
| E [mm] | 10 |
| G [mm] | 8,0 |
| I [mm] | 30,5 |
| SW1 [mm] | 10 |
| SW2 [mm] | 30 |
| Max. axial deviation* [°] | 2 |
| Impact head | PP 600 |
| clamping flange | MB 25 |
| Stop sleeve | AH 25 |
| Side load adapter** | BV 25 |
| Locking nut | KM 25 |
Further information on MC600EUMH2
| Weight | 270 g / pcs |
| GTIN | 4050571481865 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
Documents
- Catalogue page Atlas 9 (Page 899_900) (PDF)
- Data sheet (Print view)
*at higher axial deviations use side load adapters (Type BV)
***The side load adapter can only be fitted on shock absorbers without an impact head, or if required, it must be dismantled.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
