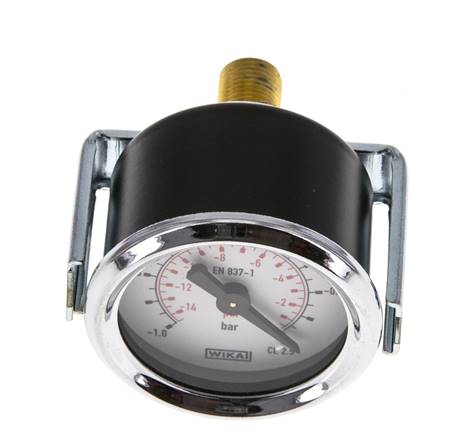

Built-in pressure gauge, 3-corner front ring, 40mm, -1 to 0 bar
Item number:
MFRE -140
Item description
Materials:
Housing: black steel, front ring: chromium-plated steel, measuring system: Cu alloy, (pressures >= 100 bar: 1.4404), connection: brass, window: transparent plastic, mounting bracket: galvanised steel, rear side
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *), centred on the rear side
Class:
2,5
Temperature range:
-20 to +60 °C
Dial:
1. External scale (black), display in bar, 2. Internal scale (red), display in PSI (Ø 40 with G 1/4" connection thread: display in bar)
Protection class:
IP 42
Note:
WIKA Type 111.12
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Housing: black steel, front ring: chromium-plated steel, measuring system: Cu alloy, (pressures >= 100 bar: 1.4404), connection: brass, window: transparent plastic, mounting bracket: galvanised steel, rear side
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *), centred on the rear side
Class:
2,5
Temperature range:
-20 to +60 °C
Dial:
1. External scale (black), display in bar, 2. Internal scale (red), display in PSI (Ø 40 with G 1/4" connection thread: display in bar)
Protection class:
IP 42
Note:
WIKA Type 111.12
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Properties
| Diameter [mm] | 40 |
| Display range [bar] | -1 to 0 |
| Connection thread | G 1/8" |
| Scale division [bar] | 0,05 |
Further information on MFRE-140
| Weight | 115 g / pcs |
| GTIN | 4050571490676 |
| Tariff No. | 90262040 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |
YouTube videos:
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*with centring pin for profiled seal
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
