Materials:
Housing: black steel, front ring: chromium-plated steel, measuring system: Cu alloy, (pressures >= 100 bar: 1.4404), connection: brass, window: transparent plastic, mounting bracket: galvanised steel, rear side
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *), centred on the rear side
Class:
2,5
Temperature range:
-20°C to +60°C

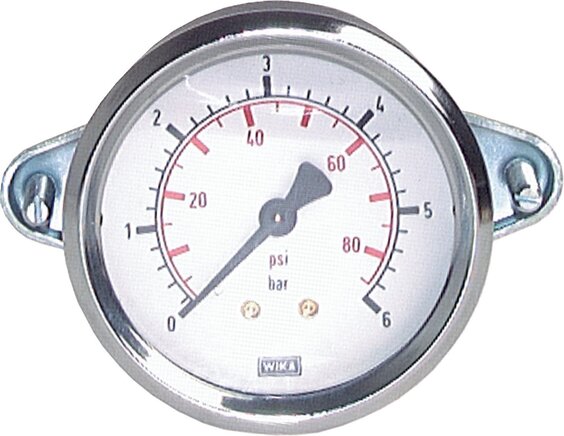

Dial:
1. External scale (black), display in bar, 2. Internal scale (red), display in PSI (Ø 40 with G 1/4" connection thread: display in bar)
Protection class:
IP 42
Note:
WIKA Type 111.12
Optional:
ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
*with centring pin for profiled seal
