Item description
Description:

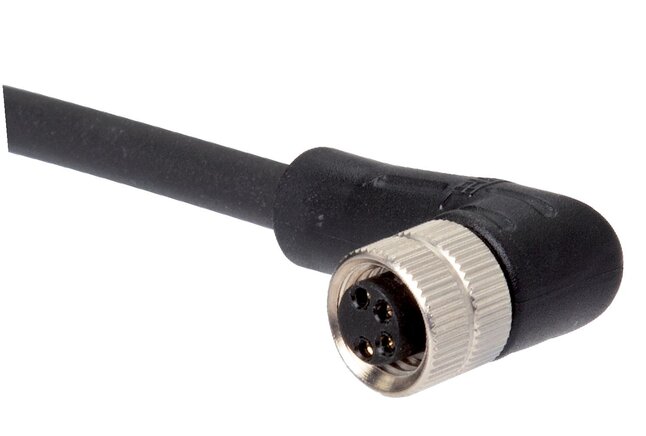

Pre-assembled connecting cables with 4-pin M 8 socket (M 8x1 female thread to DIN EN 61076-2-104) on one end and 4 loose cable ends on the other.
Temperature range:
-25 to +90 °C
Voltage:
max. 30 V AC/DC, max. 3 A
Protection class:
IP 67
Cable:
PUR cable, 4x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black
Suitable:
These cables are preferably used for the connection of light barriers. Warning! They are not compatible with the (e.g. used frequently in cylinder switches) 3 pin M 8 cable connections.
Pre-assembled connecting cables with 4-pin M 8 socket (M 8x1 female thread to DIN EN 61076-2-104) on one end and 4 loose cable ends on the other.
Temperature range:
-25 to +90 °C
Voltage:
max. 30 V AC/DC, max. 3 A
Protection class:
IP 67
Cable:
PUR cable, 4x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black
Suitable:
These cables are preferably used for the connection of light barriers. Warning! They are not compatible with the (e.g. used frequently in cylinder switches) 3 pin M 8 cable connections.
Properties
| Design | angled |
| Cable length [MTR] | 3 |
Further information on KABM843W
| Weight | 95 g / pcs |
| GTIN | 4050571885328 |
| Customs duty number | 85369010 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 893) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
