Item group
Connection lines, DIN EN 61076-2-104, M 8 (4 pin)
Description:

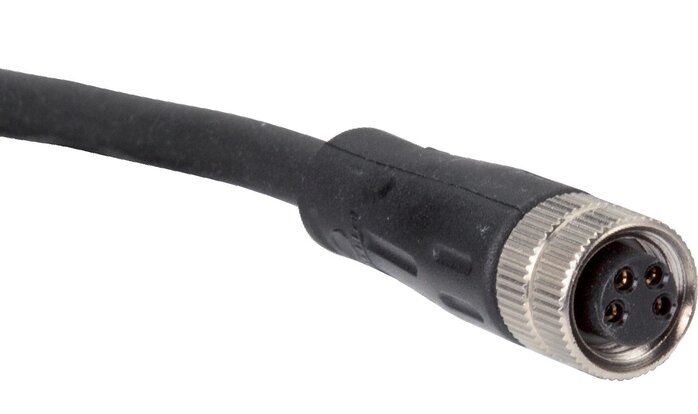

Pre-assembled connecting cables with 4-pin M 8 socket (M 8x1 female thread to DIN EN 61076-2-104) on one end and 4 loose cable ends on the other.
Temperature range:
-25 to +90 °C
Voltage:
max. 30 V AC/DC, max. 3 A
Protection class:
IP 67
Cable:
PUR cable, 4x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black
Suitable:
These cables are preferably used for the connection of light barriers. Warning! They are not compatible with the (e.g. used frequently in cylinder switches) 3 pin M 8 cable connections.
Documents:
More information
Connection lines, DIN EN 61076-2-104, M 8 (4 pin):
6 of 6 articles
KAB M84 3 G
Cable with M8 coupling, 4-wire, 3 m, straight
€13.90
incl. VAT
KAB M84 5 G
Cable with M8 coupling, 4-wire, 5 m, straight
€18.23
incl. VAT
KAB M84 10 G
Cable with M8 coupling, 4-wire, 10 m, straight
€30.36
incl. VAT
KAB M84 3 W
Cable with M8 coupling, 4-wire, 3 m, angled
€13.90
incl. VAT
KAB M84 5 W
Cable with M8 coupling, 4-wire, 5 m, angled
€18.23
incl. VAT
KAB M84 10 W
Cable with M8 coupling, 4-wire, 10 m, angled
€30.36
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
