Compact carriage, piston 6mm,stroke 5mm

EXH 6/5

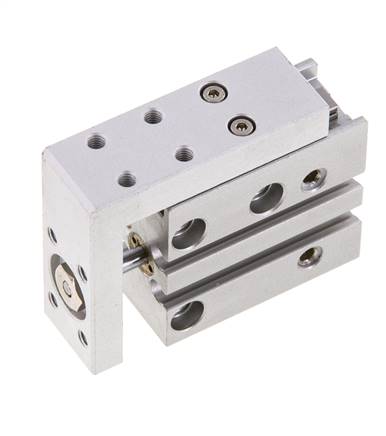

Exemplary representation: Kompaktschlitten mit Kugelführung Schematic symbol: Slider
229,43€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10°C to +70°C

Operating pressure:
max. 7 bar

Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 6
Stroke [mm] 5
Version Compact sled
P (compressed air port) M 5
Repair sets EXH 6 REP
A [mm] 5
B [mm] 10
C [mm] 10
D [mm] 9,5
E [mm] 4
F [mm] 31,0
G [mm] 39,5
H [mm] 5,5
I [mm] 5,0
J [mm] 4x
K [mm] 19
L [mm] 5,5
LA [mm] 10
LT [mm] 42
M [mm] 18
N [mm] 32,0
NS [mm] 14
O [mm] 6,5
P1 M 3
P2 M 3
P3 M 3
P4 M 4
P5 [mm] 6.0 (3.3 deep)
P6 [mm] 3,3
Q1 [mm] 16
Q2 [mm] 39,0
R1 [mm] 9
R2 [mm] 15
S [mm] 38,0
S1 [mm] 5
S2 [mm] 5,5
S3 [mm] 6,5
T [mm] 17,0
U [mm] 10,5
V [mm] 5,0
W [mm] 19
X [mm] 8
Y [mm] 15
Z [mm] 9
EXH6/5
{{ $t('shop.all.gewicht') }} 65 g / pcs
{{ $t('shop.all.gtin') }} 4050571871598
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 873) atlas9_seiten/873.pdf
    3D CAD file (volume model) protected/cad/3d/73566/exh65438738.stp
