Item group

Compact carriages with ball guide , EXH

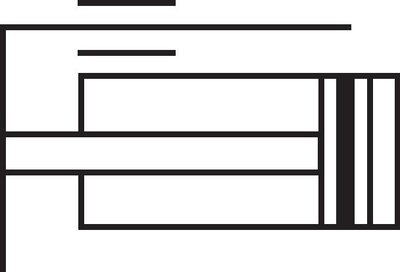

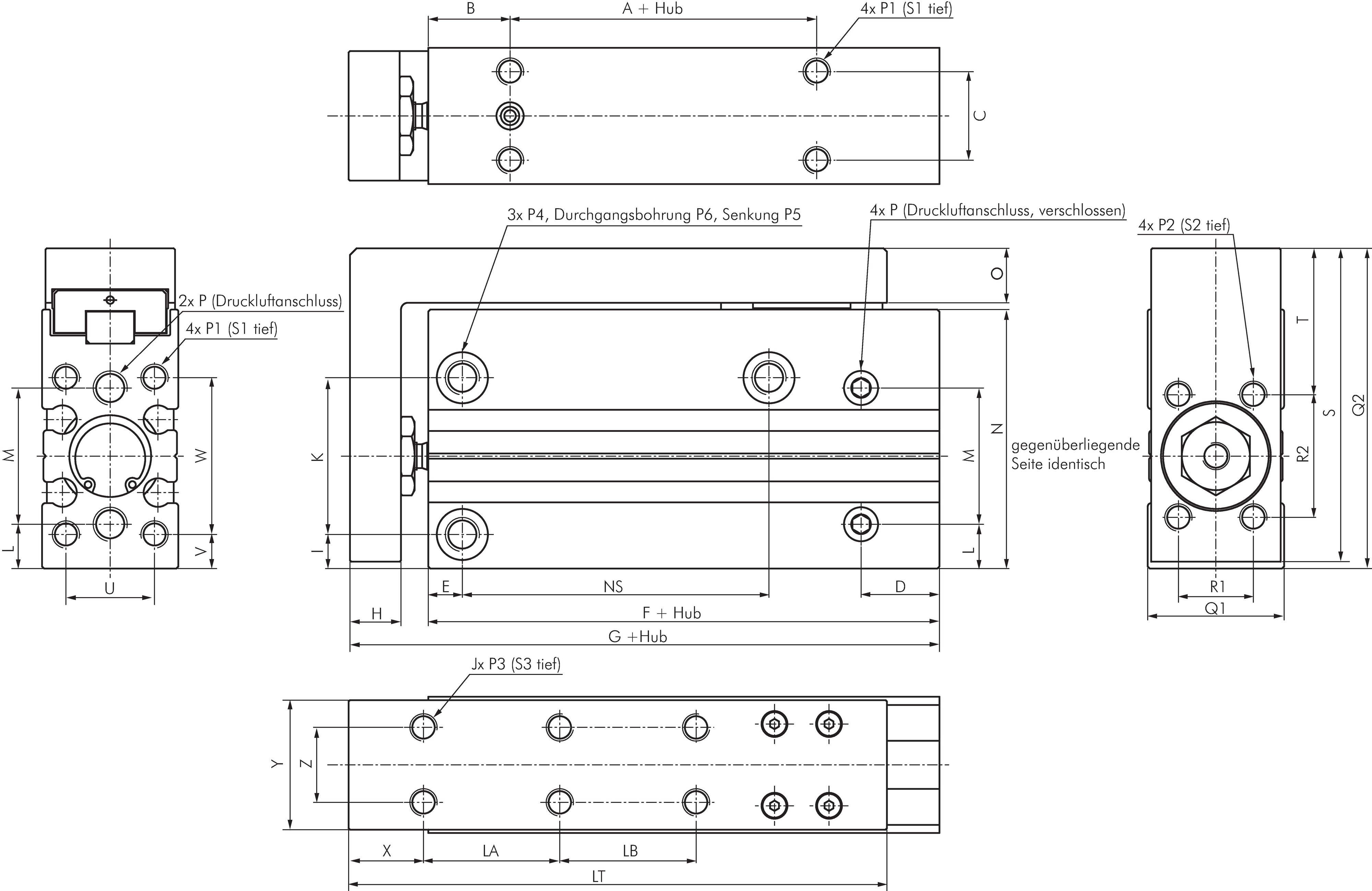

Exemplary representation: Compact slide with ball bearing guide

YouTube videos:

How does a pneumatic cylinder function?

Regulate travel speed on pneumatic cylinder

Materials:

Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:

-10 to +70 °C

Operating pressure:

max. 7 bar

Permitted kinetic energy:

Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ

Version:

With Magnetic piston

Cylinder switch type:

D

Advantages:

•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH

Documents:

Catalogue page Atlas 9 (Page 873) (PDF)

More information

Compact carriages with ball guide , EXH:

20 of 35 articles

Compact carriage, piston 6mm,stroke 5mm(EXH 6/5)

EXH 6/5

Compact carriage, piston 6mm,stroke 5mm

€229.43 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	5	Compact sled	M 5

Compact carriage, piston 6mm,stroke 10mm(EXH 6/10)

EXH 6/10

Compact carriage, piston 6mm,stroke 10mm

€233.73 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	10	Compact sled	M 5

Compact carriage, piston 6mm,stroke 15mm(EXH 6/15)

EXH 6/15

Compact carriage, piston 6mm,stroke 15mm

€240.03 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	15	Compact sled	M 5

Compact carriage, piston 6mm,stroke 20mm(EXH 6/20)

EXH 6/20

Compact carriage, piston 6mm,stroke 20mm

€244.25 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	20	Compact sled	M 5

Compact carriage, piston 6mm,stroke 25mm(EXH 6/25)

EXH 6/25

Compact carriage, piston 6mm,stroke 25mm

€250.41 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	25	Compact sled	M 5

Compact carriage, piston 6mm,stroke 30mm(EXH 6/30)

EXH 6/30

Compact carriage, piston 6mm,stroke 30mm

€254.74 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
6	30	Compact sled	M 5

Compact carriage, piston 10mm,stroke 5mm(EXH 10/5)

EXH 10/5

Compact carriage, piston 10mm,stroke 5mm

€253.62 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	5	Compact sled	M 5

Compact carriage, piston 10mm,stroke 10mm(EXH 10/10)

EXH 10/10

Compact carriage, piston 10mm,stroke 10mm

€259.06 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	10	Compact sled	M 5

Compact carriage, piston 10mm,stroke 15mm(EXH 10/15)

EXH 10/15

Compact carriage, piston 10mm,stroke 15mm

€264.08 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	15	Compact sled	M 5

Compact carriage, piston 10mm,stroke 20mm(EXH 10/20)

EXH 10/20

Compact carriage, piston 10mm,stroke 20mm

€269.45 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	20	Compact sled	M 5

Compact carriage, piston 10mm,stroke 25mm(EXH 10/25)

EXH 10/25

Compact carriage, piston 10mm,stroke 25mm

€279.89 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	25	Compact sled	M 5

Compact carriage, piston 10mm,stroke 30mm(EXH 10/30)

EXH 10/30

Compact carriage, piston 10mm,stroke 30mm

€285.35 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	30	Compact sled	M 5

Compact carriage, piston 10mm,stroke 40mm(EXH 10/40)

EXH 10/40

Compact carriage, piston 10mm,stroke 40mm

€298.49 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	40	Compact sled	M 5

Compact carriage, piston 10mm,stroke 50mm(EXH 10/50)

EXH 10/50

Compact carriage, piston 10mm,stroke 50mm

€311.58 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
10	50	Compact sled	M 5

Compact carriage, piston 16mm,stroke 5mm(EXH 16/5)

EXH 16/5

Compact carriage, piston 16mm,stroke 5mm

€285.35 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	5	Compact sled	M 5

Compact carriage, piston 16mm,stroke 10mm(EXH 16/10)

EXH 16/10

Compact carriage, piston 16mm,stroke 10mm

€290.73 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	10	Compact sled	M 5

Compact carriage, piston 16mm,stroke 15mm(EXH 16/15)

EXH 16/15

Compact carriage, piston 16mm,stroke 15mm

€298.49 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	15	Compact sled	M 5

Compact carriage, piston 16mm,stroke 20mm(EXH 16/20)

EXH 16/20

Compact carriage, piston 16mm,stroke 20mm

€303.87 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	20	Compact sled	M 5

Compact carriage, piston 16mm,stroke 25mm(EXH 16/25)

EXH 16/25

Compact carriage, piston 16mm,stroke 25mm

€311.58 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	25	Compact sled	M 5

Compact carriage, piston 16mm,stroke 30mm(EXH 16/30)

EXH 16/30

Compact carriage, piston 16mm,stroke 30mm

€317.03 incl. VAT

Quantity

pcs

Immediately available

Piston diameter [mm]	Stroke [mm]	Version	P (compressed air port)
16	30	Compact sled	M 5

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
