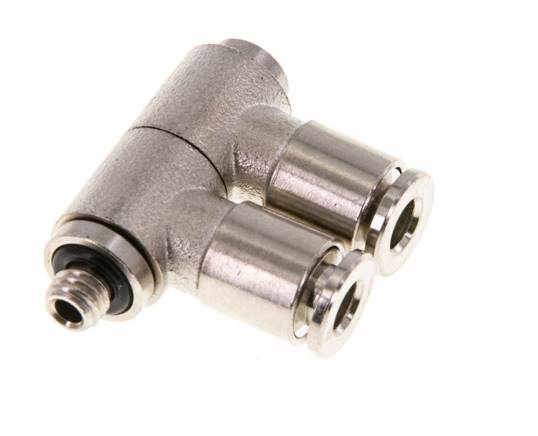

Compact push-in fitting, angle, double, brass galvanised
Item number:
RIB 38 04 05
Item description
Model series topline, C and CV
Materials:
Body: nickel-plated brass, seal: NBR (CV model series: FKM), sleeve: nickel-plated brass (Topline model series: plastic)
Temperature range:
-20°C to max. +70°C (Model series CV: max. +150°C)
Operating pressure:
-0.95 to 15 bar
Model series stainless steel
Materials:
Body: stainless steel (316), seal: FKM, sleeve: stainless steel (316)
Temperature range:
-15°C up to max. +110°C
Operating pressure:
-0,95 to 18 bar
Information:
Only use silicone free seals and lubricants during assembly!
Advantages:
•It is possible to assembly this model series even after the hose has been inserted. The connections are screwed in using an allen key.
Materials:
Body: nickel-plated brass, seal: NBR (CV model series: FKM), sleeve: nickel-plated brass (Topline model series: plastic)
Temperature range:
-20°C to max. +70°C (Model series CV: max. +150°C)
Operating pressure:
-0.95 to 15 bar
Model series stainless steel
Materials:
Body: stainless steel (316), seal: FKM, sleeve: stainless steel (316)
Temperature range:
-15°C up to max. +110°C
Operating pressure:
-0,95 to 18 bar
Information:
Only use silicone free seals and lubricants during assembly!
Advantages:
•It is possible to assembly this model series even after the hose has been inserted. The connections are screwed in using an allen key.
Properties
| Model series | double, brass galvanised |
| G | M 5 |
| D [mm] | 4 |
| Temperature range [°C] | -20 to +70 |
| Operating pressure [bar] | -0.95 to 15 |
Further information on RIB380405
| Weight | 18 g / pcs |
| GTIN | 4050571585976 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Pneumatic Atlas 8 (Page 73a) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
