Elbow push-in fittings, compact (adjustable), model series C

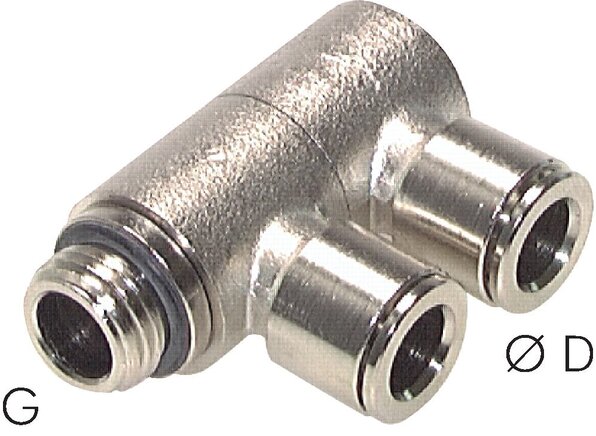

Exemplary representation: Angular push-in connection, compact (positionable), series C, single, nickel-plated brass Exemplary representation: Angular push-in connection, compact (positionable), series C, double, nickel-plated brass detailed view: Angular push-in connection with hexagon socket

Model series topline, C and CV

Materials:

Body: nickel-plated brass, seal: NBR (CV model series: FKM), sleeve: nickel-plated brass (Topline model series: plastic)

Temperature range:

-20°C to max. +70°C (Model series CV: max. +150°C)

Operating pressure:

-0.95 to 15 bar

Model series stainless steel

Materials:

Body: stainless steel (316), seal: FKM, sleeve: stainless steel (316)

Temperature range:

-15°C up to max. +110°C

Operating pressure:

-0,95 to 18 bar

Information:

Only use silicone free seals and lubricants during assembly!

Advantages:

•It is possible to assembly this model series even after the hose has been inserted. The connections are screwed in using an allen key.
