Item description
Materials:
Zinc plated steel
Scope of delivery:

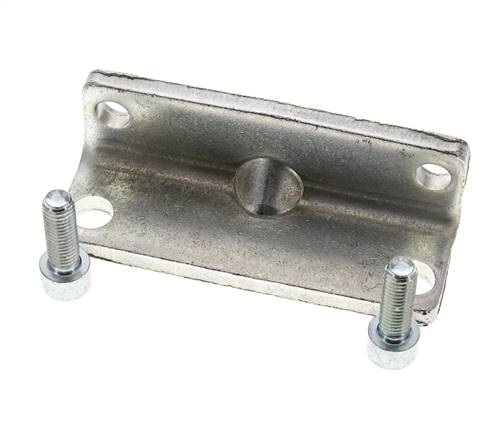

1 pc mounting bracket, incl. 2 fastening screws
Zinc plated steel
Scope of delivery:
1 pc mounting bracket, incl. 2 fastening screws
Properties
| for piston diameter [mm] | 100 |
| A [mm] | 5 |
| B [mm] | 11,0 |
| C [mm] | 103 |
| D [mm] | 123 |
| E [mm] | 26,5 |
| F [mm] | 38,5 |
| H [mm] | 13,5 |
| I [mm] | 33 |
| K [mm] | 45,0 |
| L [mm] | 8 |
Further information on NXA100
| Weight | 500 g / pcs |
| GTIN | 4050571526429 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
