Foot mountings (front or rear), for compact cylinders UNITOP

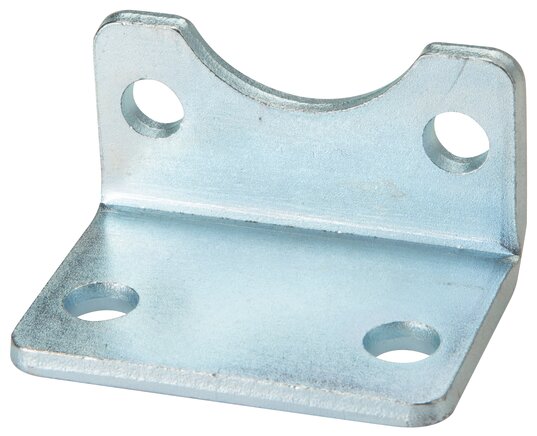

Name: Foot mounting for compact cylinders 12 & 16 mm of Airtec (WEEE DE94696834 )
Brand: Airtec (WEEE DE94696834 )
SKU: NXA 12/16
Price: 7.53 EUR
Availability: InStock

Zgleden uprizoritev: Mounting bracket for compact cylinder, galvanised steel

Materials:

Zinc plated steel

Scope of delivery:

1 pc mounting bracket, incl. 2 fastening screws

*Cylinders NXD & NXE Ø 12 to 25 only have one mounting hole. Therefore, we do not recommend use of these foot fastenings for these dimensions.

Documents:

Catalogue page Atlas 9 (Page 857) (PDF)

More information

Foot mountings (front or rear), for compact cylinders UNITOP:

9 of 9 articles

NXA 12/16

Foot mounting for compact cylinders 12 & 16 mm

€7.53 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
12 & 16*	2	4,4	18

NXA 20

Foot mounting for compact cylinders 20 mm

€8.46 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
20*	2	5,4	22

NXA 25

Foot mounting for compact cylinders 25 mm

€8.46 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
25*	2	5,4	26

NXA 32

Foot mounting for compact cylinders 32 mm

€11.82 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
32	2	6,6	32

NXA 40

Foot mounting for compact cylinders 40 mm

€14.03 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
40	5	6,6	42

NXA 50

Foot mounting for compact cylinders 50 mm

€16.60 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
50	5	9,0	50

NXA 63

Foot mounting for compact cylinders 63 mm

€19.71 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
63	5	11,0	62

NXA 80

Foot mounting for compact cylinders 80 mm

€27.94 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
80	5	11,0	82

NXA 100

Foot mounting for compact cylinders 100 mm

€36.70 incl. VAT

Quantity

pcs

Immediately available

for piston diameter [mm]	A [mm]	B [mm]	C [mm]
100	5	11,0	103
