Guide cylinder, with ball bushing, pistons 16mm,stroke 30mm

ZDFM 16/30 K

{{ $t('shop.display.artikel.link_zur_artikelgruppe') }}

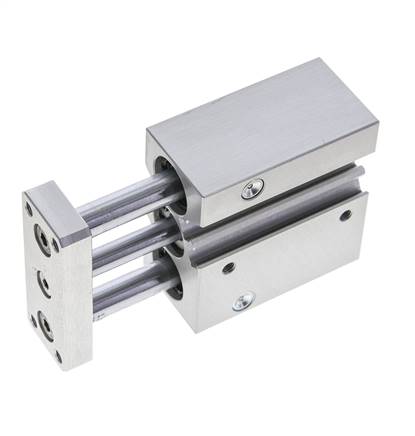

Exemplary representation: Compact cylinder with guide Schematic symbol: guided cylinder
443,29€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
 Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
 -20°C to +80°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 D, A

Advantages:
 •ideal for accepting large transverse loads,
•numerous mounting options
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 16
Stroke [mm] 30
Version with ball bushing
F (compressed air port) M 5
Repair sets ZDFM 16 REP
lateral force permissible [N] 25
permissible torque at the end-plate [Nm] 0,50
A [mm] 10
B [mm] 0
C [mm] 10
D [mm] 8
E1 [mm] 52
E2 [mm] 16
F1 [mm] 11,0
F2 [mm] 8,0
F3 [mm] 6
G1 [mm] 62
G2 [mm] 25
H [mm] 42
H1 [mm] 40
L1 [mm] 33,0
L2 [mm] 45,0
L3 [mm] 45,0
M1 [mm] 64
M2 [mm] 33
N [mm] 22
N1 [mm] 15
N2 [mm] 18
O1 [mm] 13
O2 [mm] 7
O3 [mm] 54
P1 M 5
Q [mm] 13
R [mm] 8,0
S [mm] 2
T1 [mm] 2,5
T2 [mm] 5,5
ZDFM16/30K
{{ $t('shop.all.gewicht') }} 420 g / pcs
{{ $t('shop.all.gtin') }} 4050571810078
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 870_871) atlas9_seiten/870_871.pdf
    3D CAD file (volume model) protected/cad/3d/72297/zdfm1630k#41540.stp
