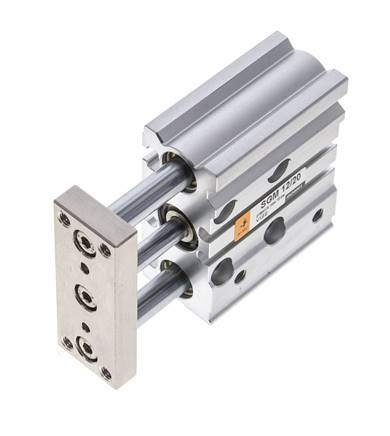

Guide cylinder, with slide bearing, pistons 12mm,stroke 20mm
Item number:
SGM 12/20
Item description
Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
Properties
| Piston diameter [mm] | 12 |
| Stroke [mm] | 20 |
| Version | with slide bearing |
| G (compressed air port) | M 5 |
| Repair sets | SGM 12 REP |
| lateral force permissible [N] | 33 |
| permissible torque at the end-plate [Nm] | 0,79 |
| C [mm] | 29,0 |
| D [mm] | 8 |
| D1 [mm] | 6 |
| E [mm] | 0 |
| FA [mm] | 8 |
| FB [mm] | 13 |
| GA [mm] | 7,5 |
| GB [mm] | 11,0 |
| GC [mm] | 8,0 |
| GD [mm] | 13,0 |
| GE [mm] | 11,0 |
| H [mm] | 58 |
| J [mm] | 18,0 |
| K [mm] | 15 |
| L1 [mm] | 6 |
| L2 [mm] | 3 |
| M | M 5 |
| M1 [mm] | 10 |
| ML [mm] | 10 |
| MM | M 4 |
| N [mm] | 5 |
| NN [mm] | 20 |
| P [mm] | 4,2 |
| PA (+0,03 / -0) [mm] | 3 |
| PP [mm] | 3,5 |
| Q [mm] | 14 |
| QL [mm] | 48 |
| R (± 0,02) [mm] | 23 |
| RR [mm] | 41 |
| T [mm] | 8.0 (4.5 deep) |
| V [mm] | 37 |
| VA [mm] | 7,4 |
| VB [mm] | 4,4 |
| VC [mm] | 3,7 |
| VD [mm] | 2,0 |
| VE [mm] | 6,2 |
| W [mm] | 26 |
| WA [mm] | 50 |
| WB [mm] | 18 |
| WL [mm] | 56 |
| WW [mm] | 22 |
Further information on SGM12/20
| Weight | 280 g / pcs |
| GTIN | 4050571873349 |
| Customs duty number | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 868_869) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
