In-line pressure regulator G 1/4", 7 bar

ILDR 14-7

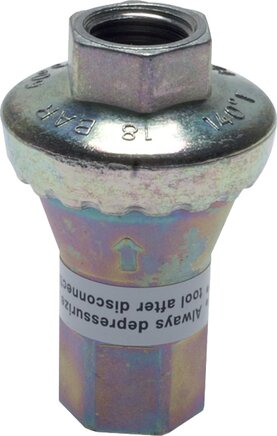

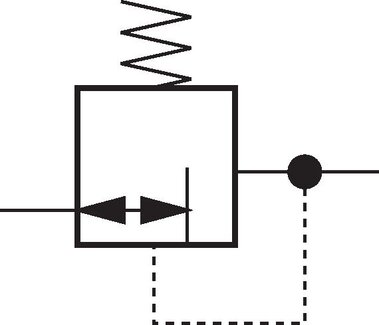

Exemplary representation: Inline pressure reducer Schematic symbol: Pressure reducer
36,62€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Function:
non-relieving, preset diaphragm pressure regulator

Materials:
Body: Zinc die-cast, internal parts: Brass, stainless steel, seals: NBR

Temperature range:
0°C to +60°C

Input pressure:
max. 18 bar

Media:
Compressed air, nitrogen, neutral gas

Advantages:
•the pressure which has been set cannot be altered

Warning:
When relieving the primary side, the secondary side is not vented!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Thread G 1/4"
Outlet pressure [bar] 7
Flow* [l/min] 800
Pressure tolerance [bar] ± 0,7
ILDR14-7
{{ $t('shop.all.gewicht') }} 85 g / pcs
{{ $t('shop.all.gtin') }} 4050571371616
{{ $t('shop.display.artikel.zollwarennummer') }} 84818099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 950) atlas9_seiten/950.pdf
    Documentation doku/drmini.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    3D CAD file (volume model) protected/cad/3d/70024/ildr14-7#248551.stp
  • {{ $t('shop.display.datenblatt.titel') }} (Print view)
*at 12 bar input pressure and 0,5 bar pressure loss

{{ $t('shop.all.unverbindliche_richtwerte') }}
