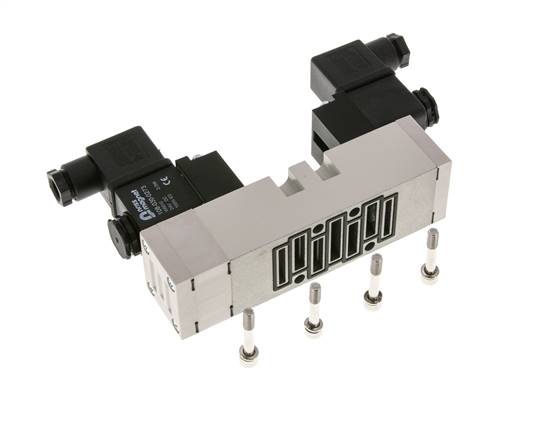

ISO valve (size 1), 5/3-way, Centre position breathing, 115 V AC
Item number:
SIV453 IPSC-A1
Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Switching time (at 5 bar):
< 40 ms
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Switching time (at 5 bar):
< 40 ms
Properties
| Control voltage | 115 V AC |
| function | Centre position breathing |
| ISO size | 1 |
| Operating pressure [bar] | 2 - 10 |
| flow [l/min] | 1500 |
| Power consumption (AC) [VA] | 4,1 |
| Spare solenoid coil | MAG M 115V |
Further information on SIV453IPSC-A1
| GTIN | 4050571628918 |
| Customs duty number | 84812090 |
| Manufacturer | YPC |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
