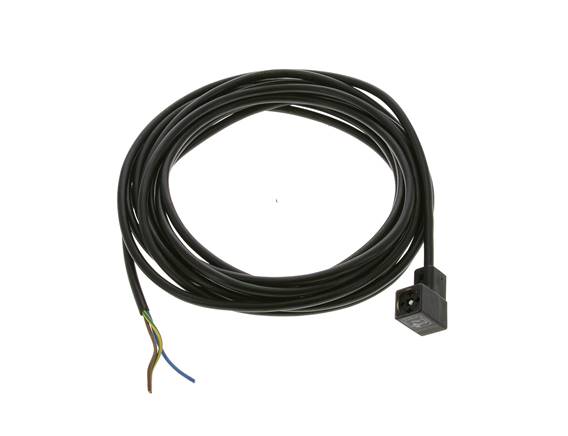

LED connector with 5 mtr cable, size 0 (Industry standard C)
Item number:
KAB ST00 5 LED
Item description
Description:
Prefabricated connection lines with in one case a plug acc. to DIN 43650 / EN 175301-803 / industrial standard, with yellow LED display and protection circuit and otherwise loose cable ends.
Temperature range:
-25 to +70 °C
Voltage:
24 V AC / DC, max. 5 A (size 0: max. 3 A)
Voltage tolerance:
± 25 %
Protection class:
IP 67
Cable:
PVC cable 3x 0.75 mm² (plug size 0: 3x 0.5 mm²)
Scope of delivery:
Plug with sprayed cable incl. screw and integrated seal.
Suitable:
These cables are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Prefabricated connection lines with in one case a plug acc. to DIN 43650 / EN 175301-803 / industrial standard, with yellow LED display and protection circuit and otherwise loose cable ends.
Temperature range:
-25 to +70 °C
Voltage:
24 V AC / DC, max. 5 A (size 0: max. 3 A)
Voltage tolerance:
± 25 %
Protection class:
IP 67
Cable:
PVC cable 3x 0.75 mm² (plug size 0: 3x 0.5 mm²)
Scope of delivery:
Plug with sprayed cable incl. screw and integrated seal.
Suitable:
These cables are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Properties
| Cable length [MTR] | 5 |
| Plug size | 0 |
| Standard | Industry standard C |
| Number of contacts | 2 & PE |
| Plug height | 25 |
Further information on KABST005LED
| Weight | 210 g / pcs |
| GTIN | 4050571876012 |
| Customs duty number | 85444290 |
Documents
- Catalogue page Atlas 9 (Page 895) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
