Connection lines, Standard connector for magnetic coils

Description

Description:

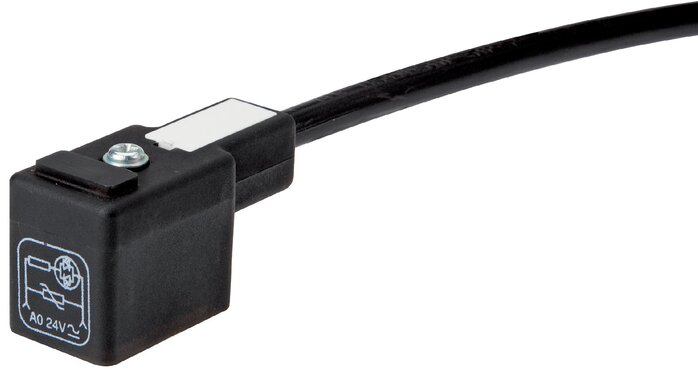

Prefabricated connection lines with in one case a plug acc. to DIN 43650 / EN 175301-803 / industrial standard, with yellow LED display and protection circuit and otherwise loose cable ends.

Temperature range:
-25°C to max. +70°C

Voltage:
24 V AC / DC, max. 5 A (size 0: max. 3 A)

Protection class:
IP 67

Cable:
PVC cable 3 x 0.75 mm² (plug size 0: 3 x 0.5 mm²)

Scope of delivery:
Plug with sprayed cable incl. screw and integrated seal.

Suitable:
These cables are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.

Find the right item

Cable length [MTR]
Plug size
Standard
Plug height

Connection lines, Standard connector for magnetic coils: 9 of 9 items

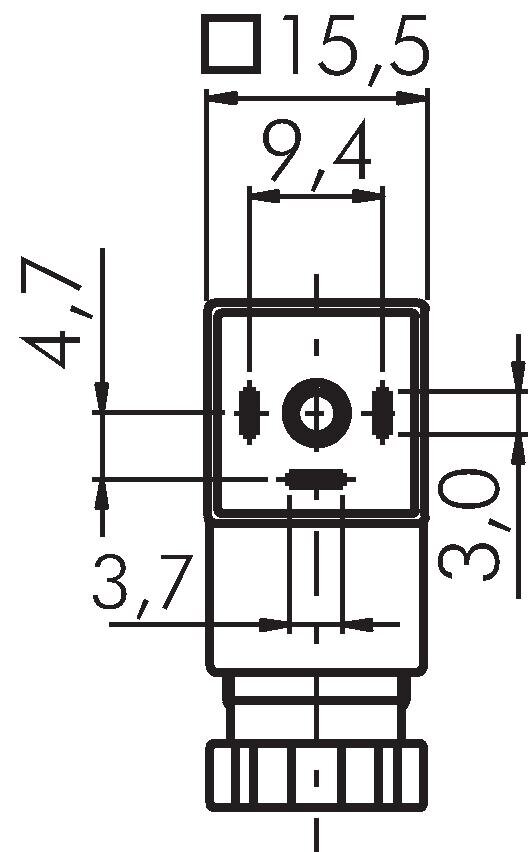

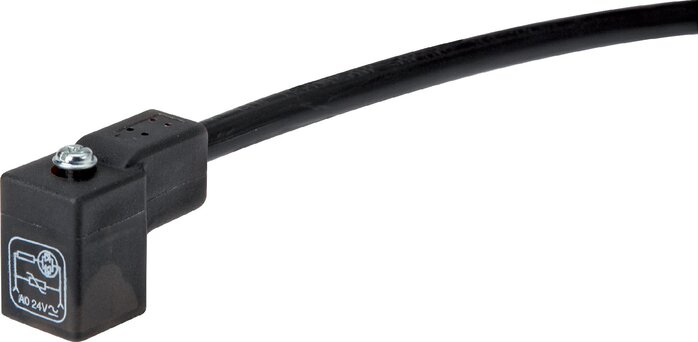

LED connector with 3 mtr cable, size 0 (Industry standard C)
  • Cable length [MTR]

    3

  • Plug size

    0

  • Standard

    Industry standard C

  • Number of contacts

    2 + PE

  • Plug height

    25

Immediately available
Inventory check:

Please wait, check is in process...

16,50 €

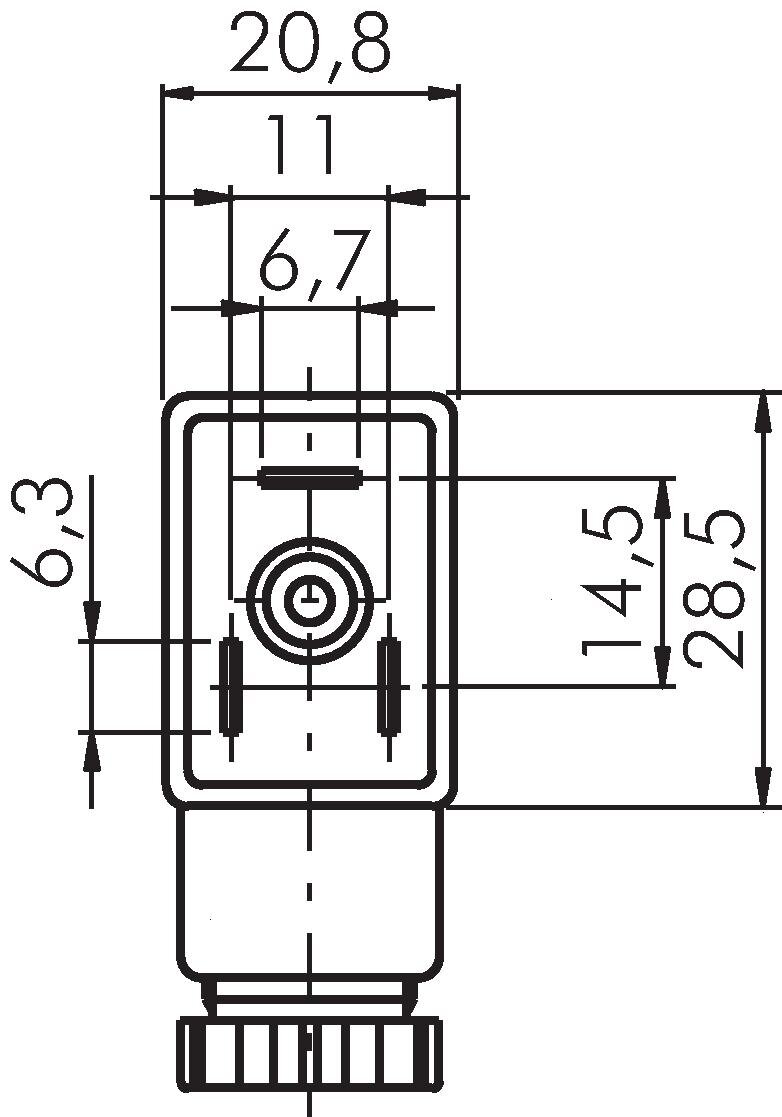

LED connector with 3 mtr cable, size 1 (Industry standard B)
  • Cable length [MTR]

    3

  • Plug size

    1

  • Standard

    Industry standard B

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

16,50 €

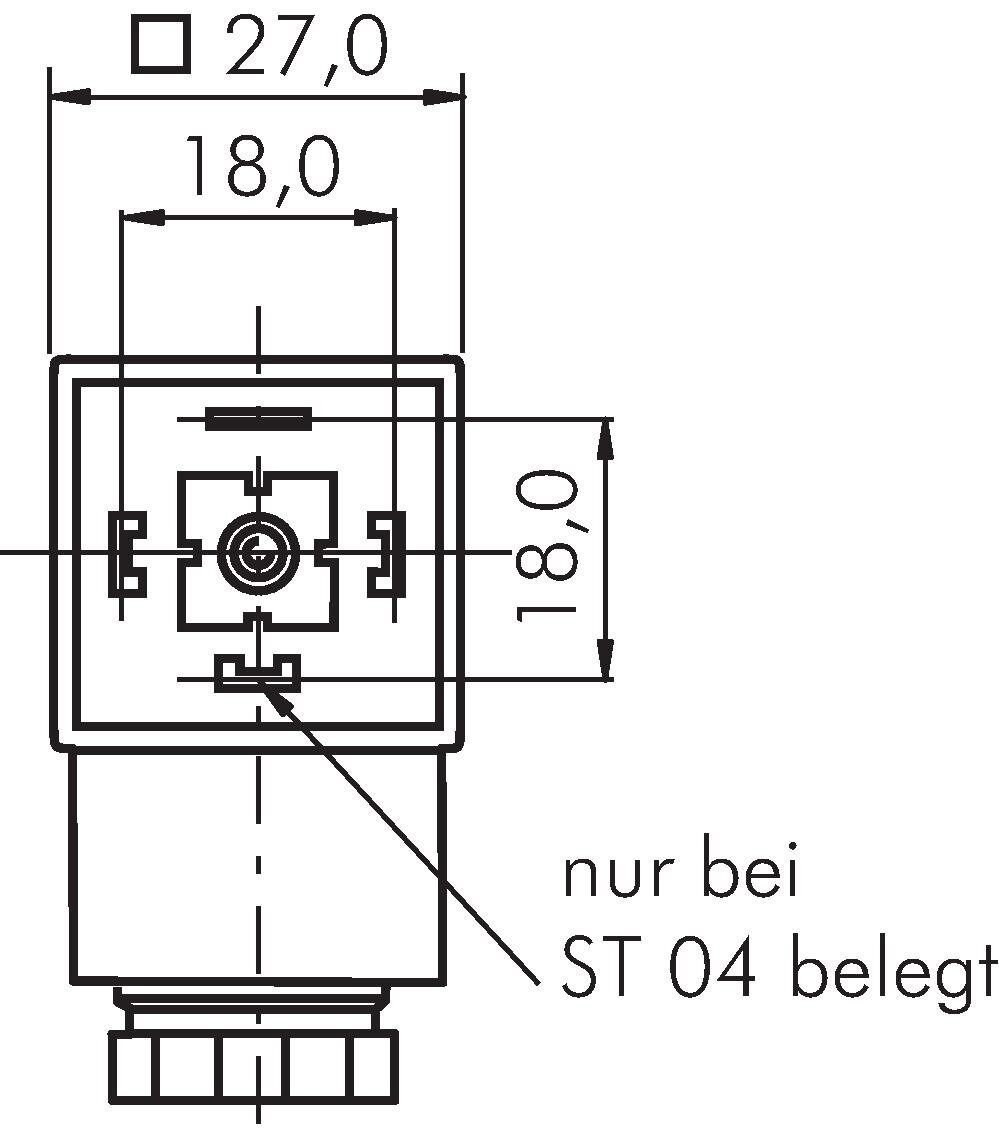

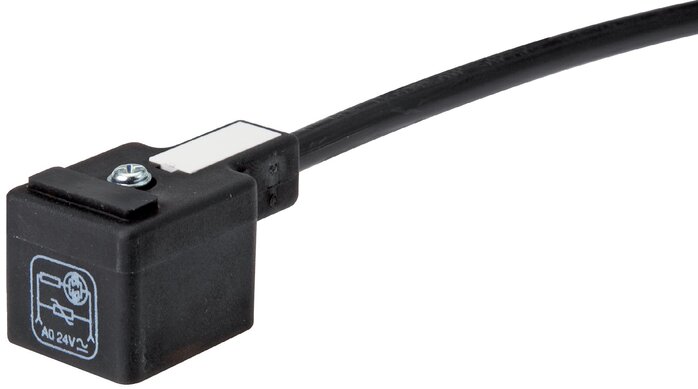

LED connector with 3 mtr cable, size 3 (DIN/EN-A)
  • Cable length [MTR]

    3

  • Plug size

    3

  • Standard

    DIN/EN-A

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

16,50 €

LED connector with 5 mtr cable, size 0 (Industry standard C)
  • Cable length [MTR]

    5

  • Plug size

    0

  • Standard

    Industry standard C

  • Number of contacts

    2 + PE

  • Plug height

    25

Immediately available
Inventory check:

Please wait, check is in process...

23,00 €

LED connector with 5 mtr cable, size 1 (Industry standard B)
  • Cable length [MTR]

    5

  • Plug size

    1

  • Standard

    Industry standard B

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

23,00 €

LED connector with 5 mtr cable, size 3 (DIN/EN-A)
  • Cable length [MTR]

    5

  • Plug size

    3

  • Standard

    DIN/EN-A

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

23,00 €

LED connector with 10 mtr cable, size 0 (Industry standard C)
  • Cable length [MTR]

    10

  • Plug size

    0

  • Standard

    Industry standard C

  • Number of contacts

    2 + PE

  • Plug height

    25

Immediately available
Inventory check:

Please wait, check is in process...

40,25 €

LED connector with 10 mtr cable, size 1 (Industry standard B)
  • Cable length [MTR]

    10

  • Plug size

    1

  • Standard

    Industry standard B

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

40,25 €

LED connector with 10 mtr cable, size 3 (DIN/EN-A)
  • Cable length [MTR]

    10

  • Plug size

    3

  • Standard

    DIN/EN-A

  • Number of contacts

    2 + PE

  • Plug height

    27

Immediately available
Inventory check:

Please wait, check is in process...

40,25 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
