Item description
Description:

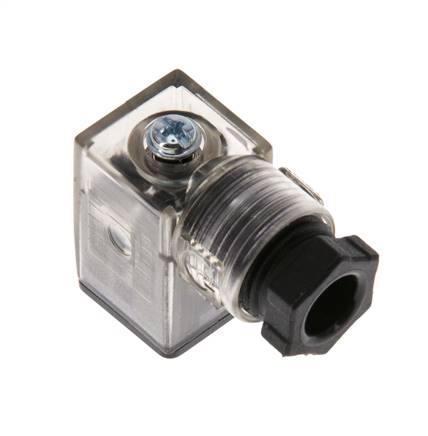

Push in connector acc. to DIN 43650 / EN 175301-803 / industrial standard with LED display and protection circuit. The colour of the LED is yellow for 24V AC/DC types, red for 230V AC sort.
Temperature range:
-30 to +90 °C
Voltage:
24 V AC/DC / 230 V AC, max. 6 A (plug size 3: max. 10 A)
Voltage tolerance:
24 V AC/DC: ± 25%, 230 V AC: +8% / -25%
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Push in connector acc. to DIN 43650 / EN 175301-803 / industrial standard with LED display and protection circuit. The colour of the LED is yellow for 24V AC/DC types, red for 230V AC sort.
Temperature range:
-30 to +90 °C
Voltage:
24 V AC/DC / 230 V AC, max. 6 A (plug size 3: max. 10 A)
Voltage tolerance:
24 V AC/DC: ± 25%, 230 V AC: +8% / -25%
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Properties
| Voltage | 24 V AC/DC |
| Version | Special model DIN 43650 / EN 175301-803 |
| Plug size | 0C |
| Standard | DIN/EN-C |
| Number of contacts | 2 & PE |
| Height [mm] | 27 |
| Cable connection | PG 7 |
Further information on ST00CLED24V
| Weight | 11 g / pcs |
| GTIN | 4050571889760 |
| Customs duty number | 85369010 |
Documents
- Catalogue page Atlas 9 (Page 894) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
