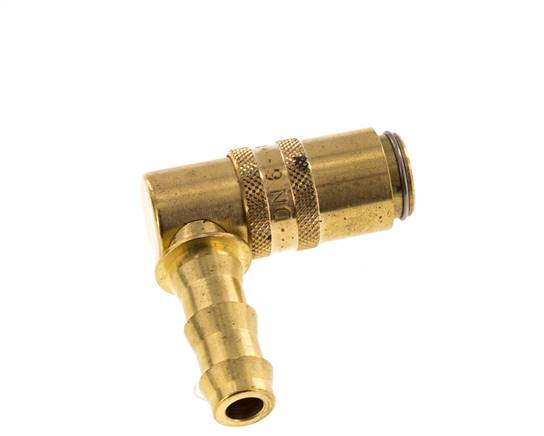

Moulded coupling socket (Angle 90°) 9mm pin, 9,5mm Push-Lok
Item number:
KDTSP 1090 BA-S
Item description
Materials:
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
+5 to +200 °C (Wasser bis 150°C)
Operating pressure:
0 to 15 bar
Operating range:
For liquid media with temperatures up to +200°C, e.g. for cooling circuits on plastic processing machines
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
HASCO (Z8 .../9 ...)
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)
Temperature range:
+5 to +200 °C (Wasser bis 150°C)
Operating pressure:
0 to 15 bar
Operating range:
For liquid media with temperatures up to +200°C, e.g. for cooling circuits on plastic processing machines
Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).
Optional:
with unlocking protection (standard by stainless steel couplings) -S
To differentiate the brass couplings easier:
Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless
Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread
Compatible with**:
HASCO (Z8 .../9 ...)
Properties
| Material | Brass |
| Design | Angle 90° |
| Version | with valve |
| Hose diameter (inner) [mm] | 9,5 |
| Usable for plug with valve | yes |
| Unlocking protection | yes |
| Compatible with HASCO | Z80PL/9x90 |
Further information on KDTSP1090BA-S
| Weight | 65 g / pcs |
| GTIN | 4050571403638 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 304) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
**Names and designations are partly trademarks of the manufacturers entered.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
