Item group

Coupling sockets with Push-Lok push-in nozzles, DN 6 (9 mm spigot)

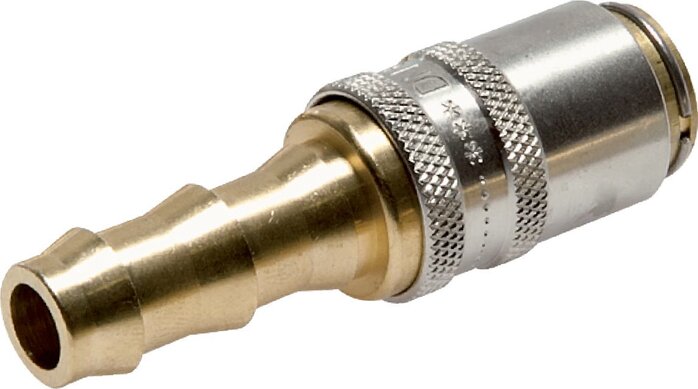

Exemplary representation: Coupling socket, straight grommet with release catch, brass detailed view: unlocking protection detailed view: Plug dimensions


Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)

Temperature range:

-20°C to +160°C

Operating pressure:

0 to 15 bar

Operating range:

For liquid media with temperatures up to +160°C, e.g. for cooling circuits on plastic processing machines (+200°C on request)


Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).


with unlocking protection (standard by stainless steel couplings) -S

To differentiate the brass couplings easier:

Coupling socket:

Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless

Coupling plug:

Plain brass plug = metric thread, nickel-plated brass plug = imperial thread

Compatible with**:

Hasco (Z8 .../9 ...)
**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 304) atlas9_seiten/304.pdf
    mould couplings
