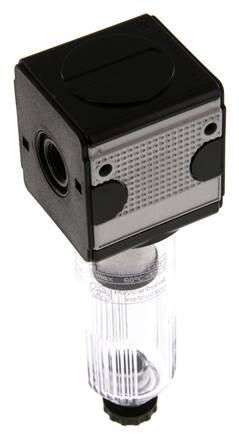

Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.
Dust removal:
> 0,3 µm (99,99 %)
Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)
Optional:
Model series 0 (only type FV 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.
Dust removal:
> 0,3 µm (99,99 %)
Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)
Optional:
Model series 0 (only type FV 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
Properties
| Version | Pre-filter (microfilter) |
| Model series | Multifix 1 |
| Thread | G 1/4" |
| Optimal flow* [l/min] | 160 |
| Container design | Plastic container |
| Condensate drain | Semi-automatic |
| Max. condensate amount [cm³] | 10 |
| H [mm] | 156 |
| H1 [mm] | 129 |
| L [mm] | 48 |
| Mounting brackets | W 1 |
| Coupling kit | KP 1 |
| Replacement filter | V 23/40 |
| input pressure [bar] | 1,5 - 16 |
Further information on FV14
| Weight | 300 g / pcs |
| GTIN | 4050571310646 |
| Customs duty number | 84213925 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 586) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at inlet pressure 6 bar and 0.02 bar pressure loss, **Metal tank with automatic draining AM/AMNC: max. 16 bar
