Item group
Pre-filters - Multifix, up to 2000 l/min*
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.
Dust removal:
> 0,3 µm (99,99 %)
Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)
Optional:
Model series 0 (only type FV 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
*at inlet pressure 6 bar and 0.02 bar pressure loss, **Metal tank with automatic draining AM/AMNC: max. 16 bar
Documents:
More information
Filter items
Pre-filters - Multifix, up to 2000 l/min*:
20 of 22 articles
€96.33
incl. VAT
€102.05
incl. VAT
€125.91
incl. VAT
€183.43
incl. VAT
€205.82
incl. VAT
€247.51
incl. VAT
€284.68
incl. VAT

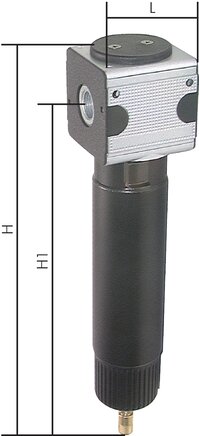

FV 142 MB AM
MULTIFIX Pre-filter (microfilter) G 1/4", Multifix 2
€308.35
incl. VAT
€447.87
incl. VAT
€308.47
incl. VAT
€308.47
incl. VAT
€364.88
incl. VAT
€364.88
incl. VAT
FV 345 MB AM
MULTIFIX Pre-filter (microfilter) G 3/4", Multifix 5
€727.80
incl. VAT
€775.77
incl. VAT
€75.23
incl. VAT
€85.67
incl. VAT
€103.76
incl. VAT
€184.15
incl. VAT
€91.61
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
