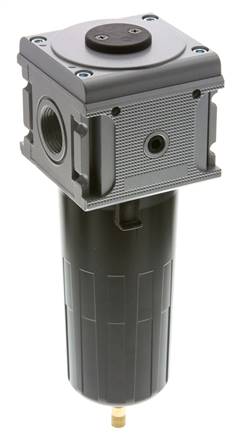

MULTIFIX Pre-filter (microfilter), G 3/4", Multifix 5

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate

Temperature range:
-10°C to +60°C

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.

Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.

Dust removal:
> 0.3 µm (99,99 %)

Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)

Optional:
Model series 0 (only type FV 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC

Version	Pre-filter (microfilter)
Model series	Multifix 5
Thread	G 3/4"
Optimal flow* [l/min]	1600
Container design	Metal bowl without inspection tube
Condensate drain	automatic
Container volumes [cm³]	150
H [mm]	311
H1 [mm]	259
L [mm]	100
Mounting brackets	W 5
Coupling kit	KP 5
Replacement filter	V 61/130
Accessories differential pressure indicators 0 - 0.35 bar (especially economical)	DDA B
Accessories differential pressure gauges 0 - 0.5 bar	DDA M
input pressure [bar]	1.5 - 16

{{ $t('shop.all.gewicht') }}	2 kg / pcs
{{ $t('shop.all.gtin') }}	4050571310714
{{ $t('shop.display.artikel.zollwarennummer') }}	84213925
