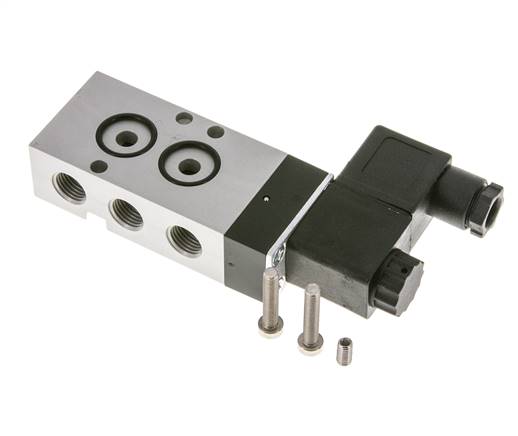

NAMUR solenoid valve, 5/2-way Air spring return, G 1/4", 24 V DC
Item number:
KN 05510HN 24V=
Item description
Materials:
Body: anodized aluminium and plastic, internal parts: aliminium, stainless steel and brass, seal: NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Connection 1
Function:
3/2-way version vented in the spring chamber of the actuator, therefore an exhaust air flow control is not possible. For 5/2-way version, an exhaust air flow control (speed controller) is possible with help from 2 piece flow control silencer DS 14. Please order the flow control silencer separately.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: anodized aluminium and plastic, internal parts: aliminium, stainless steel and brass, seal: NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Connection 1
Function:
3/2-way version vented in the spring chamber of the actuator, therefore an exhaust air flow control is not possible. For 5/2-way version, an exhaust air flow control (speed controller) is possible with help from 2 piece flow control silencer DS 14. Please order the flow control silencer separately.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Version | Standard |
| Control voltage | 24 V DC |
| Switching | 5/2-way |
| function | Air spring return |
| Thread (1x) | G 1/4" |
| Thread exhaust air | 2x G 1/4" |
| flow [l/min] | 900 |
| Operating pressure [bar] | 3 - 10 |
| Power consumption (DC) [W] | 4,2 |
| Spare solenoid coil | MAG N 24V= |
Further information on KN05510HN24V=
| Weight | 300 g / pcs |
| GTIN | 4050571442439 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
