3/2-way & 5/2-way NAMUR valves G 1/4“, Series KN

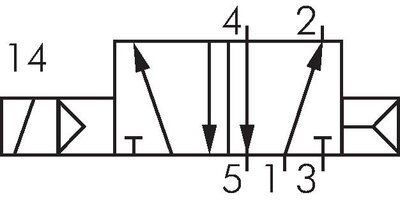

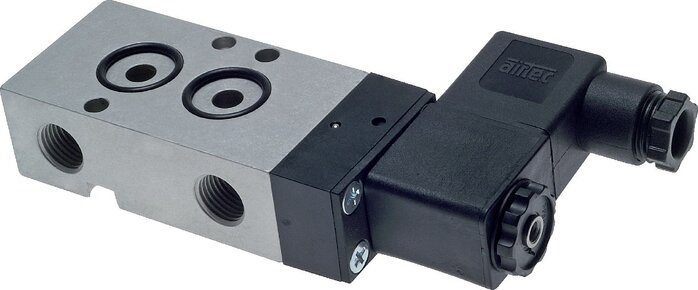

Exemplary representation: 3/2-way Exemplary representation: 5/2-way Exemplary representation: 5/2-way (pulse) Schematic symbol: Return with air spring Schematic symbol: Return with spring Schematic symbol: Return with air spring Schematic symbol: Return with spring Schematic symbol: Resetting by pulse valve

Materials:

Body: anodized aluminium and plastic, internal parts: aliminium, stainless steel and brass, seal: NBR

Temperature range:

-10°C to +70°C

Operating pressure:

3 - 10 bar (pulse valve: 2 - 10 bar)

Control voltages:

Standard: 24 V=, 230 V AC, upon request: other voltages

Power consumption:

Direct current: 4.2 W, alternating current: 4.0 VA (draw: 7.0 VA)

Protection class:

IP 65

Solenoid:

N (plug size 1)

Function:

3/2-way version vented in the spring chamber of the actuator, therefore an exhaust air flow control is not possible. For 5/2-way version, an exhaust air flow control (speed controller) is possible with help from 2 piece flow control silencer DS 14. Please order the flow control silencer separately.

Information:

These valves are generally delivered with coils and plugs!
*available with ATEX approval, EX II 2GD c T5 T100°C, T Medium/Tamb: -10°C to +50°C max., see the operating instructions for full details, **EX II 2G EEx m IIC T5 / EX II 2D IP 65 T95°C will have 3 meters of cable supplied, *** EX II 2G EEx ia IIC T6 (8 bar max.) supply via intrinsically safe circuits U <= 28 V, I <= 115 mA, P <= 1.6 W

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 545) atlas9_seiten/545.pdf
    NAMUR valves
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way & 5/2-way NAMUR valves G 1/4“, Series KN:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
KN 05310HN 24V= *
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V=
99,81€ incl. VAT
KN 05310HN 230V *
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 230 V AC
99,81€ incl. VAT
KN 05310HN 12V=
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 12 V=
99,81€ incl. VAT
KN 05310HN 48V=
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 48 V=
99,81€ incl. VAT
KN 05310HN 24VAC
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V AC
99,81€ incl. VAT
KN 05310HN 115V
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 115 V AC
99,81€ incl. VAT
KN 05310HN 24X **
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V= (ATEX)
206,63€ incl. VAT
KN 05310HN 230X **
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 230 V AC (ATEX)
221,70€ incl. VAT
KN 05310HN 24XE ***
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V= (ATEX)
197,22€ incl. VAT
KN 05311HN 24V= *
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V=
100,64€ incl. VAT
KN 05311HN 230V *
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 230 V AC
100,64€ incl. VAT
KN 05311HN 12V=
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 12 V=
106,23€ incl. VAT
KN 05311HN 48V=
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 48 V=
100,64€ incl. VAT
KN 05311HN 24VAC
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V AC
100,64€ incl. VAT
KN 05311HN 115V
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 115 V AC
106,23€ incl. VAT
KN 05311HN 24X **
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V= (ATEX)
207,46€ incl. VAT
KN 05311HN 230X **
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 230 V AC (ATEX)
201,55€ incl. VAT
KN 05311HN 24XE ***
NAMUR solenoid valve, 3/2-way (spring return), G 1/4", 24 V= (ATEX)
198,05€ incl. VAT
KN 05510HN 24V= *
NAMUR solenoid valve, 5/2-way (spring return), G 1/4", 24 V=
102,96€ incl. VAT
KN 05510HN 230V *
NAMUR solenoid valve, 5/2-way (spring return), G 1/4", 230 V AC
102,96€ incl. VAT
