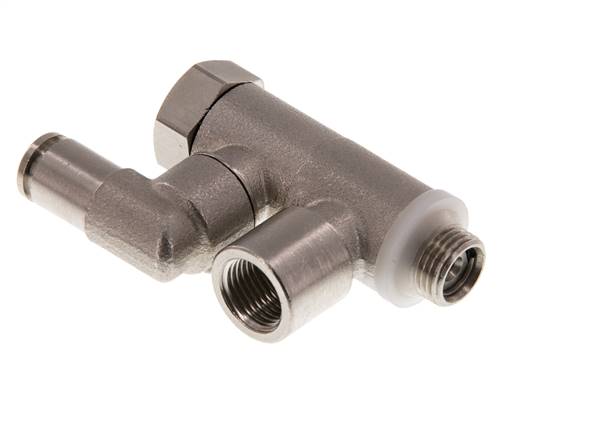

Pilot operated check valve G 1/8"-G 1/8", with manual emergency operation IQS-MSV
Item number:
STOP 18 HN MSV
Item description
Materials:
Body and sleeve: Nickel-plated brass, seals: NBR, holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20 to +80 °C
Operating pressure:
0,5 to 10 bar
Media:
oiled and unlubricated, filtered compressed air, neutral and non-hazardous gases
Function:
The check valve function can be used for a brief intermediate stop of an actuator. If there is a control signal on the actuating connection, the flow between the banjo and male threads is possible in both directions. If there is no control signal, the valve locks the flow from the male thread to the banjo (venting the actuator), thus causing it to stop briefly. The flow from the banjo to the male threads (towards the actuator) is unaffected by the control signal.
Body and sleeve: Nickel-plated brass, seals: NBR, holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20 to +80 °C
Operating pressure:
0,5 to 10 bar
Media:
oiled and unlubricated, filtered compressed air, neutral and non-hazardous gases
Function:
The check valve function can be used for a brief intermediate stop of an actuator. If there is a control signal on the actuating connection, the flow between the banjo and male threads is possible in both directions. If there is no control signal, the valve locks the flow from the male thread to the banjo (venting the actuator), thus causing it to stop briefly. The flow from the banjo to the male threads (towards the actuator) is unaffected by the control signal.
Properties
| Banjo design | Female thread |
| Version | with manual emergency operation |
| G1 screw in threads | G 1/8" |
| D2 actuation (push in fitting) [mm] | 4 |
| Ring piece internal thread D | G 1/8" |
Further information on STOP18HNMSV
| Weight | 65 g / pcs |
| GTIN | 4050571863852 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 81) (PDF)
- Data sheet (Print view)
