Item description
Function:

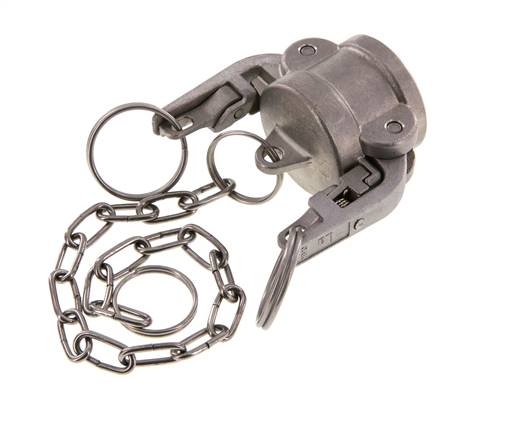

A safety rapid locking mechanism integrated in the hand levers locks the coupling in the coupled state and this is fully automatic. The coupling can only be opened by manually unlocking the safety lever (2-1/2" and 6" with unlocking pins). All quick action chucks(conforming to the MIL-C-27487 standard) can be used as plugs.
Materials:
Body: stainless steel 1.4408, seal: NBR, handle, ring and chain: Stainless steel
Temperature range:
-10 to +80 °C
Advantages:
•coupling is automatically secured in the coupled position,
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
A safety rapid locking mechanism integrated in the hand levers locks the coupling in the coupled state and this is fully automatic. The coupling can only be opened by manually unlocking the safety lever (2-1/2" and 6" with unlocking pins). All quick action chucks(conforming to the MIL-C-27487 standard) can be used as plugs.
Materials:
Body: stainless steel 1.4408, seal: NBR, handle, ring and chain: Stainless steel
Temperature range:
-10 to +80 °C
Advantages:
•coupling is automatically secured in the coupled position,
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
Properties
| Material | Stainless steel (1.4408) |
| size | 1" |
| DN [mm] | 25 (1") |
| for plug diameter [mm] | 36,7 |
| PN [bar] | 16 |
Further information on KLDV10ES-S
| Weight | 380 g / pcs |
| GTIN | 4050571433741 |
| Customs duty number | 73071990 |
| RoHS compliant | Yes |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
