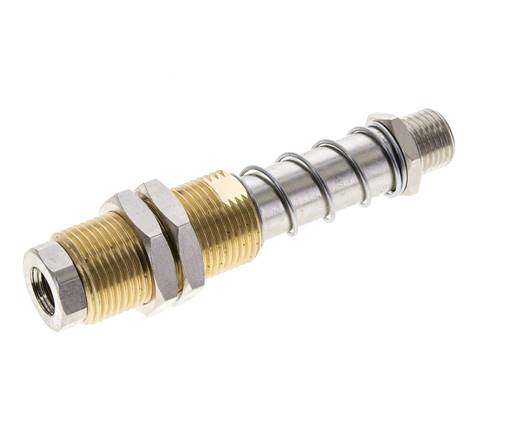

Spring plunger G 1/4" (AG)xG 1/8" (Female thread), stroke 25mm, Standard
Item number:
VSFS 14A/18-25
Item description
Materials:
Body: Steel, galvanized / Brass, gaskets: NBR
Temperature range:
-10 to +80 °C
Operating pressure:
-1 to 0 bar
Body: Steel, galvanized / Brass, gaskets: NBR
Temperature range:
-10 to +80 °C
Operating pressure:
-1 to 0 bar
Properties
| Version | Standard |
| G1 | G 1/4" (male thread) |
| G2 | G 1/8" |
| Stroke [mm] | 25 |
| Bulkhead thread G3 | M 20x1,5 |
| Emax [mm] | 30 |
| L1 [mm] | 95 |
| L2 [mm] | 40 |
| L3 [mm] | 41,0 |
| Shape | 2 |
Further information on VSFS14A/18-25
| Weight | 140 g / pcs |
| GTIN | 4050571725563 |
| Customs duty number | 84879090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 911) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
