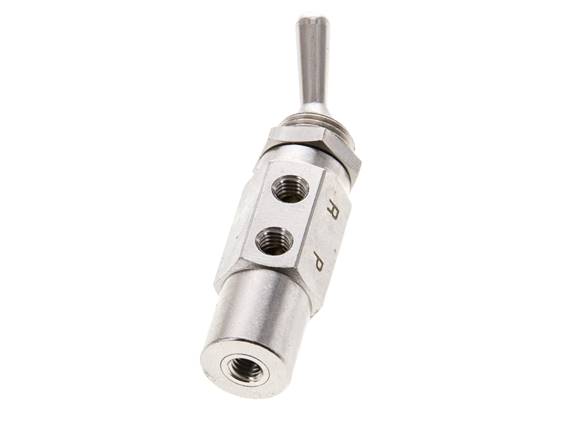

Item description
Materials:
Body: Nickel-plated brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-5 to +70 °C
Operating pressure:
0 to 8 bar
Flow:
185 l/min
Nominal width:
2 mm
Media:
lubricated and unlubricated, filtered compressed air, neutral gases
Required mounting hole for panel mounting:
Ø 12.5 mm, maximum sheet thickness: 4 mm (bulkhead thread: M 12x1)
Advantages:
•low price,
•extensive application options,
•simple and fast setting up of a circuit,
•rocker lever can be positioned
Body: Nickel-plated brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-5 to +70 °C
Operating pressure:
0 to 8 bar
Flow:
185 l/min
Nominal width:
2 mm
Media:
lubricated and unlubricated, filtered compressed air, neutral gases
Required mounting hole for panel mounting:
Ø 12.5 mm, maximum sheet thickness: 4 mm (bulkhead thread: M 12x1)
Advantages:
•low price,
•extensive application options,
•simple and fast setting up of a circuit,
•rocker lever can be positioned
Properties
| function | 3/2-way |
| Thread 1 (input) | M 5 |
| Thread 2 (output) | M 5 |
| Thread 3 (exhaust air) | M 5 |
Further information on K35
| Weight | 48 g / pcs |
| GTIN | 4050571392062 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 787) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*3/2-way valve with closed connection 3
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
