Item group

2/2-way & 3/2-way rocker arm valves with female thread

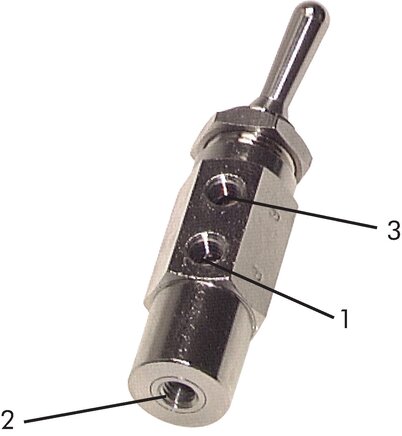

Exemplary representation: 3/2-way rocker arm valve with female thread Schematic symbol: 2/2-way rocker valve Schematic symbol: 3/2-way rocker arm valve

Materials:

Body: Nickel-plated brass, internal parts: brass / stainless steel, seal: NBR

Temperature range:

-5°C to +70°C

Operating pressure:

0 to 8 bar

Flow:

185 l/min

Nominal width:

2 mm

Media:

lubricated and unlubricated, filtered compressed air, neutral gases

Required mounting hole for panel mounting:

Ø 12.5 mm, maximum sheet thickness: 4 mm (bulkhead thread: M 12x1)

Advantages:

•low price,
•extensive application options,
•simple and fast setting up of a circuit,
•rocker lever can be positioned
*3/2-way valve with closed connection 3

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 787) atlas9_seiten/787.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
2/2-way & 3/2-way rocker arm valves with female thread:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
33,89€ incl. VAT
32,62€ incl. VAT
