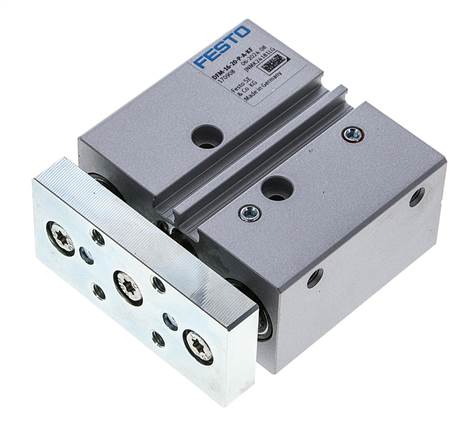

DFM-16-20-P-A-KF (170908) guided drive
Número de artículo:
OT-FESTO004468
Propiedades
| Centre of mass distance of payload to Joch plate [mm] | 50 |
| Stroke [mm] | 20 |
| Piston diameter | 16 mm |
| Operating mode actuator unit | Joch |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Guide |
| Position detection | For proximity switch |
| Operating pressure [bar] | 2 to 10 |
| Max. speed [m/s] | 0,8 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| ambient temperature [°C] | -5 to 60 |
| Impact energy at the end positions [J] | 0,150 |
| Max. permitted moment load Mx depending on stroke [Nm] | 1,790 |
| Max. usable load depending on the stroke at a defined distance xs [N] | 41,00 |
| Theoretical force at 6 bar, Return flow [N] | 90 |
| Theoretical force at 6 bar, flow [N] | 121 |
| Moving mass [g] | 229,0 |
| Alternative connections | See product drawing |
| Pneumatic connection | M5 |
| Material information |
Copper and PTFE-free, RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | NBR |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Max. force Fy [N] | 389 |
| Max. force Fy static [N] | 415 |
| Max. force Fz [N] | 389 |
| Max. force Fz static [N] | 415 |
| Max. torque Mx [Nm] | 8,95 |
| Max. torque Mx static [Nm] | 9,55 |
| Max. torque My [Nm] | 3,89 |
| Max. torque My static [Nm] | 4,15 |
| Max. torque Mz [Nm] | 3,89 |
| Max. torque Mz static [Nm] | 4,15 |
| Centre of mass of the moved mass depending on stroke [mm] | 16,5 |
Más información sobre OT-FESTO004468
| Peso | 480 g / Udad |
| GTIN | 4052568013448 |
| Código aduanero | 84123100 |
| Fabricante | Festo |
