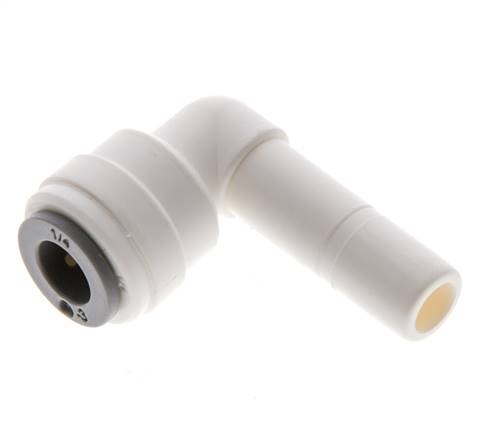

Angle push in fitting5/16" (7,94 mm) push in nipple-1/4" (6,35 mm) hose, IQS-LE (EPDM-seal)
Št. Izdelka:
IQSL 5/16H-1/4 LE
Opis artikla
Materials:
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 do +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 do +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
Lastnosti
| D | 5/16" (7,94 mm) |
| D1 | 1/4" (6,35 mm) |
| Obratovalni tlak | -0,95 do 16 |
Dodatne informacije o IQSL5/16H-1/4LE
| Teža | 3,7 g / Kos |
| GTIN | 4050571921576 |
| Številka carinskega blaga | 39174000 |
| Skladno z RoHS | Da |
| Proizvajalec | Sang-A |
Dokumenti
- Catalogue page Atlas 9 (Page 87) (PDF)
- Dokumentacijo: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- Dokumentacijo: Appraisal FDA-NSF (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
