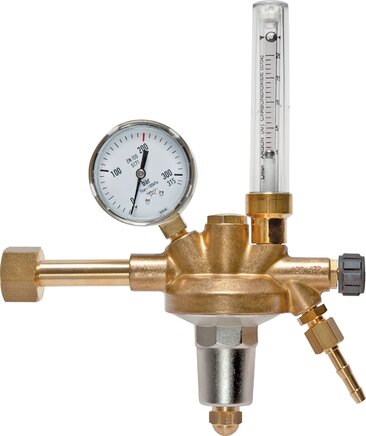

Bottle pressure regulators 0 do 30 l/min for Formirni plin (200 bar)
Št. Izdelka:
DRFDM FORM FM *
267,52 €
z DDV
Količina Kos
Opis artikla
Version:
Bottle pressure reducer in hot-pressed brass design with pressure gauge for bottle content and working pressure. Oxygen pressure reducer is BAM tested.
Temperature range:
-20 do +60 °C
Pressure gauge connection:
2x G 1/4" (DRFDM ARGON FM & DRFDM FORM FM: 1x G 1/4")
Scope of delivery:
Pressure reducer including shut-off valve and pressure gauge / flow meter
Bottle pressure reducer in hot-pressed brass design with pressure gauge for bottle content and working pressure. Oxygen pressure reducer is BAM tested.
Temperature range:
-20 do +60 °C
Pressure gauge connection:
2x G 1/4" (DRFDM ARGON FM & DRFDM FORM FM: 1x G 1/4")
Scope of delivery:
Pressure reducer including shut-off valve and pressure gauge / flow meter
Lastnosti
| Priključek prirobnice | W 21,8x1/14 LH (IG) |
| Vhodni tlak | 200 |
| za uporabo s/z | Formirni plin |
| Območje reguliranja tlaka | 0 - 30 |
| Cevni priključek | G 1/4" LH, nastavek 6 mm |
| Izvedba | DIN 477-1, vnetljivi plini |
| Nadomestna tesnila za steklenični priključek | FDM DR |
Dodatne informacije o DRFDMFORMFM
| Teža | 1,5 kg / Kos |
| GTIN | 4050571269449 |
| Številka carinskega blaga | 84811099 |
Dokumenti
- Catalogue page Atlas 9 (Page 617) (PDF)
- Dokumentacijo: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*with flowmeter, **outlet: Threaded connection piece for cutting ring connection 12 L without shut-off valve
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
