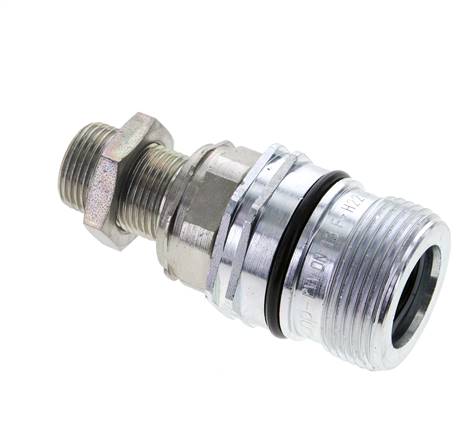

Bulkhead screw coupling, Objemka Size.3, 12 S (M20x1,5)
Št. Izdelka:
570822.3
Opis artikla
Function:
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max. 50 bar under pressure
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20 do +100 °C
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max. 50 bar under pressure
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20 do +100 °C
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range
Lastnosti
| Izvedba | Objemka |
| Serija | težka serija |
| Cevni priključek | 12 S (M20x1,5) |
| A | M 36x2 |
| B | 42 |
| DN (ISO) | 12,5 |
| Velikost | 3 |
| Najv. debelina pregrade | 12 |
| Pregradni vijačni priključek | M 20x1,5 |
| PN | 400 |
Dodatne informacije o 570822.3
| Teža | 330 g / Kos |
| GTIN | 4050571204297 |
| Številka carinskega blaga | 84812010 |
Dokumenti
- Catalogue page Atlas 9 (Page 329) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*not standardised following ISO 14541
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
