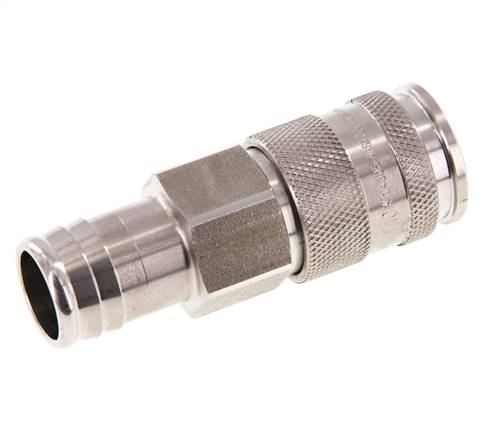

Coupling socket (NW10) 19 (3/4")mm hose, Nerjavno jeklo
Št. Izdelka:
KDS 19 NW10 ES *
Opis artikla
Materials:
Type nickel-plated brass: Body: nickel-plated brass, sliding sleeve: nickel-plated steel, seal: NBR
Type brass/steel: Body: nickel-plated bras/steel (QPQ), sliding sleeve: nickel-plated brass, seal: NBR
Type stainless steel: Body and sliding sleeve: 1.4305, seal: FKM
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 do 35 bar
Compatible with**:
Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)
Flow****:
Nickel-plated brass/M 1.4305: 2150 l/min (option: -BA: 1020 l/min), brass/steel: 3600 l/min
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA
Type nickel-plated brass: Body: nickel-plated brass, sliding sleeve: nickel-plated steel, seal: NBR
Type brass/steel: Body: nickel-plated bras/steel (QPQ), sliding sleeve: nickel-plated brass, seal: NBR
Type stainless steel: Body and sliding sleeve: 1.4305, seal: FKM
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 do 35 bar
Compatible with**:
Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)
Flow****:
Nickel-plated brass/M 1.4305: 2150 l/min (option: -BA: 1020 l/min), brass/steel: 3600 l/min
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA
Lastnosti
| Material | Nerjavno jeklo |
| Premer mehke cevi (znotraj) | 19 (3/4") |
| Primerno za vtiče – omogočajo obojestransko zaporo | da |
| Temperaturno območje | od -15 do +200 |
Dodatne informacije o KDS19NW10ES
| Teža | 150 g / Kos |
| GTIN | 4050571399252 |
| Številka carinskega blaga | 73071990 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 300) (PDF)
- Dokumentacijo (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
***Some names and designations may be registered trademarks of the respective manufacturers, ****6 bar inlet pressure, 0.5 bar pressure difference
*clutch can be used with plug without shut-off and with shut-off -BA. For increased flow rates in conjunction with non-shut-off coupling plugs, the actuating pin in the coupling socket can be dismantled.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
