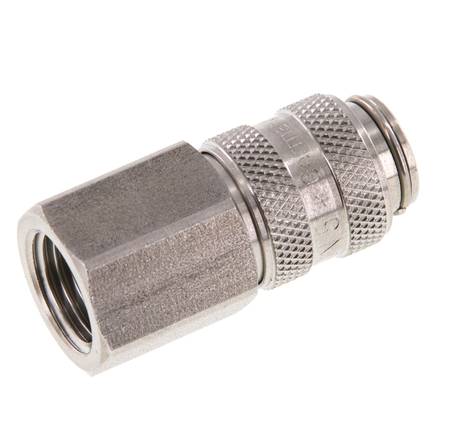

Coupling socket (NW5) G 1/4"(Female thread), Nerjavno jeklo
Št. Izdelka:
KDGI 14 NW5 ES BA
Opis artikla
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 do 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA, NPT thread -NPT, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 do 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA, NPT thread -NPT, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
Lastnosti
| Material | Nerjavno jeklo |
| Navoj notranji | G 1/4" |
| Primerno za vtiče – omogočajo obojestransko zaporo | da |
| Izvedba | Standard |
| Temperaturno območje | od -15 do +200 |
Dodatne informacije o KDGI14NW5ESBA
| Teža | 37 g / Kos |
| GTIN | 4050571396039 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 280) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
