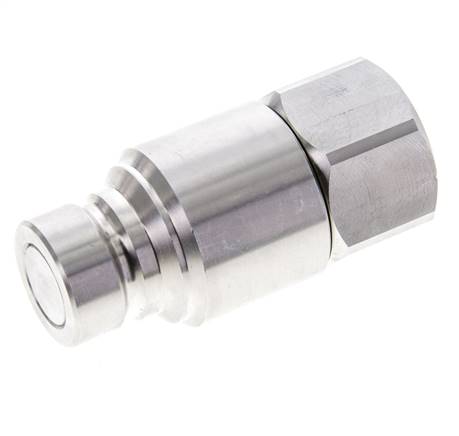

ES flat face coupling ISO 16028, Vtic Size.3, G 3/4"
Št. Izdelka:
FFS 34/3 ES-C
Opis artikla
Materials:
1.4401, spring: 1.4462, seal: FKM, support ring: PTFE
Temperature range:
-20 do +205 °C
Advantages:
•No dirt can enter, because the clutch can be easily wiped clean on the smooth surface "flat face",
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
1.4401, spring: 1.4462, seal: FKM, support ring: PTFE
Temperature range:
-20 do +205 °C
Advantages:
•No dirt can enter, because the clutch can be easily wiped clean on the smooth surface "flat face",
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
Lastnosti
| Izvedba | Vtič |
| Navoj notranji | G 3/4" |
| A | 24,5 |
| B | 38 |
| DN (ISO) | 12,5 |
| Velikost | 3 |
| PN | 250 |
Dodatne informacije o FFS34/3ES-C
| Teža | 260 g / Kos |
| GTIN | 4050571296834 |
| Številka carinskega blaga | 84812010 |
| Proizvajalec | Cejn |
Dokumenti
- Catalogue page Atlas 9 (Page 325) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
