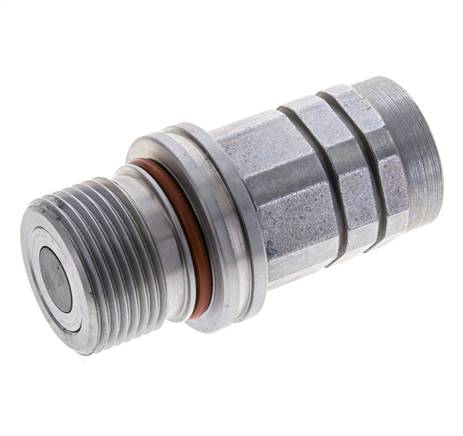

Flat face screw coupling, Objemka Size. 2, G 1/2"(Female thread)
Št. Izdelka:
FFMS 12/2
Opis artikla
Materials:
Zinc plated steel, high-wear resistance components: high-strength induction hardened steel, springs: Stainless steel 1.4310, Seal: NBR
Temperature range:
-25 do +125 °C
Can be coupled with the residual pressure in the plug up to 250 bar (sleeve with residual pressure up to 100 bar)
Advantages:
•No dirt can get in as the coupling can simply be wiped clean on the smooth “flat face” surface,
•Axial forces can be absorbed well due to the coupling's design. Especially suited for use on hydraulic hoses,
•Can be coupled while under pressure
Zinc plated steel, high-wear resistance components: high-strength induction hardened steel, springs: Stainless steel 1.4310, Seal: NBR
Temperature range:
-25 do +125 °C
Can be coupled with the residual pressure in the plug up to 250 bar (sleeve with residual pressure up to 100 bar)
Advantages:
•No dirt can get in as the coupling can simply be wiped clean on the smooth “flat face” surface,
•Axial forces can be absorbed well due to the coupling's design. Especially suited for use on hydraulic hoses,
•Can be coupled while under pressure
Lastnosti
| Izvedba | Objemka |
| Navoj notranji | G 1/2" |
| A | M 30x2 |
| B | 36 |
| DN | 8,7 |
| Velikost | 2 |
| PN | 350 |
Dodatne informacije o FFMS12/2
| Teža | 300 g / Kos |
| GTIN | 4050571296292 |
| Številka carinskega blaga | 84812010 |
Dokumenti
- Catalogue page Atlas 9 (Page 325) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
