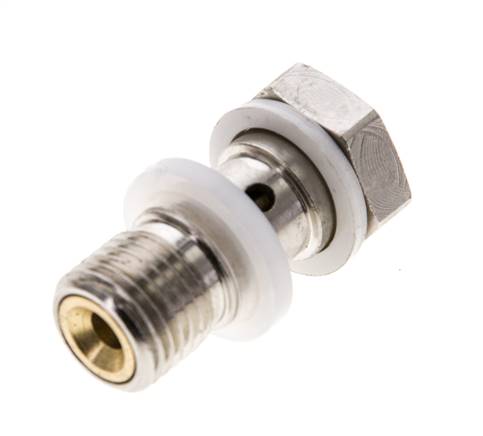

Flow control banjo bolt G 1/4", reguliranje dovodnega in izpustnega zraka (C), Vijak z zarezo (nasta
Št. Izdelka:
GRLD 1/4
Opis artikla
Temperature range:
-20 do +80 °C
Operating pressure:
0,2 do 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Body: nickel-plated brass, seal: NBR, sealing and spacer ring: plastic
Scope of delivery:
Banjo bolt with integrated valve including gasket and spacer ring
-20 do +80 °C
Operating pressure:
0,2 do 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Body: nickel-plated brass, seal: NBR, sealing and spacer ring: plastic
Scope of delivery:
Banjo bolt with integrated valve including gasket and spacer ring
Lastnosti
| Izvedba | reguliranje dovodnega in izpustnega zraka (C) |
| Nastavitev | Vijak z zarezo (nastavljivo z izvijačem) |
| Navoj | G 1/4" |
| Dolžina ročaja | 28 |
Dodatne informacije o GRLD1/4
| Teža | 33 g / Kos |
| GTIN | 4050571342197 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
