Opis artikla
Power-on time:
100% ED
Scope of delivery:

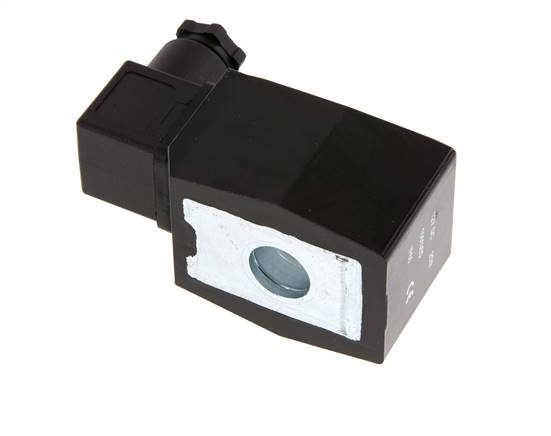

Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
100% ED
Scope of delivery:
Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
Lastnosti
| Oblika | Q |
| Krmilna napetost | 24 V AC |
| Zmogljivost | 48 VA |
| Velikost vtiča | 3 |
| Zunanja mera | 45 x 40 x 62 |
| Odmik izvrtine za sidranje L | 37 |
| Izvrtine za sidranje spodaj D1 | 16,3 |
| Izvrtine za sidranje zgoraj D2 | 16,3 |
| Ugrez zgoraj D4 | 20,1 |
Dodatne informacije o MAGQ24VAC
| Teža | 370 g / Kos |
| GTIN | 4050571817336 |
| Številka carinskega blaga | 85059029 |
| Skladno z RoHS | Da |
| Proizvajalec | EMC |
Dokumenti
- Catalogue page Atlas 9 (Page 776) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Coil must be operated with enclosed plug with integrated rectifier
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
