Opis artikla
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 do +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 do 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 do +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 do 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Lastnosti

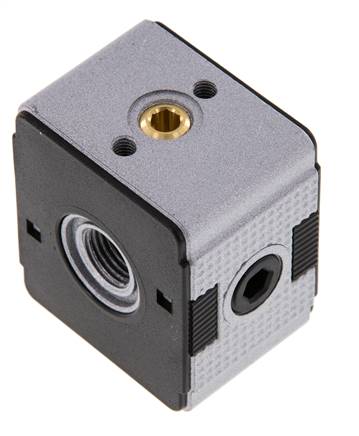

| Serija | Multifix 1 |
| Oblika | ozek |
| Navoj P/A (vhod/izhod) | G 1/4" |
| Izhod navoja B (zgoraj) | G 1/8" |
| Izhod navoja C (spodaj) | G 1/4" |
| Izhod navoja D (spredaj/zadaj) | G 1/4" |
| Pretok P-A | 3300 |
| Pretok P-B | 1100 |
| Pretok P-C | 2300 |
| Pretok P-D | 2300 |
| L1 / L2 | 35 |
| Paket spajanja za spajanje standardne izvedbe | KPS 1 |
| Paket spajanja za spajanje ozke zasnove | KPSS 1 |
Dodatne informacije o VBCL14S
| Teža | 195 g / Kos |
| GTIN | 4050571718923 |
| Številka carinskega blaga | 84818099 |
| Skladno z RoHS | Da |
Dokumenti
- Catalogue page Atlas 9 (Page 596) (PDF)
- Dokumentacijo (PDF)
- Dokumentacijo: Decision aid for selection of air units (PDF)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
