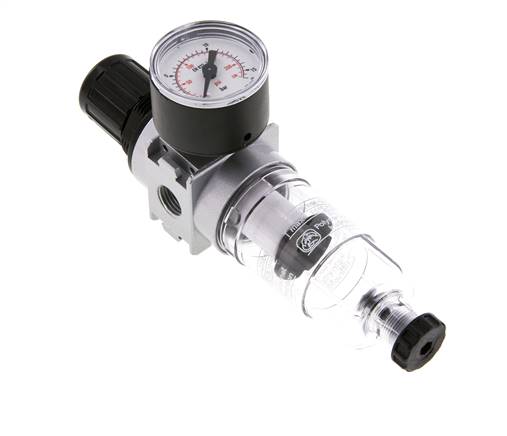

MULTIFIX Filtrirni regulator, G 1/4", 0,5 do 10bar, model series 0
Št. Izdelka:
FR 014 *
Opis artikla
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 do +60 °C
Input pressure:
1.5 - 16 bar (model series 0 when using coupling kit 1.5 - 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm (model series 5: 40 µm)
Condensate draining:
semi-automatic****
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
1450 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, version with metal bowl and without inspection tube -MB, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 do +60 °C
Input pressure:
1.5 - 16 bar (model series 0 when using coupling kit 1.5 - 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm (model series 5: 40 µm)
Condensate draining:
semi-automatic****
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
1450 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, version with metal bowl and without inspection tube -MB, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Lastnosti
| Izvedba | Filtrirni regulator |
| Navoj | G 1/4" |
| Območje reguliranja tlaka | 0,5 - 10 |
| Izvedba zbiralnika | Plastična posoda |
| Izpust kondenzata | polavtomatski |
| Manometer prikaz | 0 - 16 |
| Pritrdilni nosilec | W 0 |
| Pritrdilni kot z matico stikalne plošče | MW 1 |
| Sklopni paket | KP 0 |
| Vhodni tlak | 1,5 - 16 |
Dodatne informacije o FR014
| Teža | 350 g / Kos |
| GTIN | 4050571303570 |
| Številka carinskega blaga | 84811005 |
| Skladno z RoHS | Da |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 582) (PDF)
- Dokumentacijo (PDF)
- Dokumentacijo: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Standard series, please prefer for use, since the pressure regulation range is universally usable, **Volkswagen closer (is supplied without a spanner), ***measured at P1 = 10 bar, P2 = 6.3 bar and 1 bar pressure drop, ****As soon as the input pressure drops below the minimum input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
