Opis artikla
Functional principle:

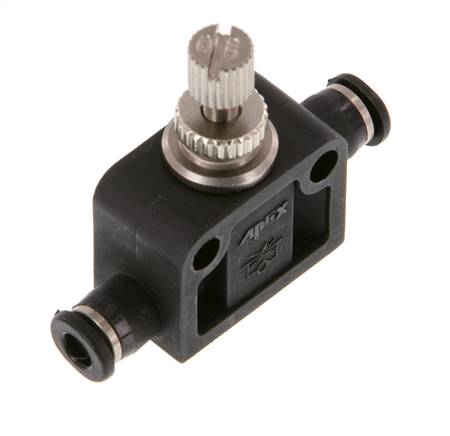

One-directional flow control valves restrict the flow in one direction, while the flow in the other direction is unrestricted. Throttle valves, on the other hand, restrict the flow in both directions according to the setting of the throttle screw. Standard form are the throttle check valves "exhaust regulating". If these are screwed into a cylinder, for example, they enable smooth running without slip-stick effect. Throttle check valves are used in the special form "supply air regulating" for cylinders with a small volume (small diameter/small stroke).
Media:
Compressed air, neutral gases
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Advantages:
•Compact design,
•Can be easily adjusted without tools
One-directional flow control valves restrict the flow in one direction, while the flow in the other direction is unrestricted. Throttle valves, on the other hand, restrict the flow in both directions according to the setting of the throttle screw. Standard form are the throttle check valves "exhaust regulating". If these are screwed into a cylinder, for example, they enable smooth running without slip-stick effect. Throttle check valves are used in the special form "supply air regulating" for cylinders with a small volume (small diameter/small stroke).
Media:
Compressed air, neutral gases
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Advantages:
•Compact design,
•Can be easily adjusted without tools
Lastnosti
| D | 3 |
| Serija | Mini IQS |
| Obratovalni tlak | -0,95 do 10 |
| Temperaturno območje | 0 do +60 |
Dodatne informacije o IQSDRV30
| Teža | 10 g / Kos |
| GTIN | 4050571372132 |
| Številka carinskega blaga | 84812090 |
| Skladno z RoHS | Da |
| Proizvajalec | Sang-A |
YouTube videi:
Dokumenti
- Catalogue page Atlas 9 (Page 60) (PDF)
- 3D CAD file (volume model) (Samo za prijavljene stranke) (STP)
- Podatkovni list (Pogled za tiskanje)
- Podatkovni list (angleščina) (Pogled za tiskanje)
*Mini design, 0°C up to max. +60°C, -0.95 to 10 bar
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
